    0.16-1.62 r/min Limestone Rotary Lime Kiln Equipment for Refractory Material

    0.16-1.62 r/min Limestone Rotary Kiln Equipment for Refractory Material

    Introduction of Limestone Rotary Kiln

    Rotary Kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.

    Cement Rotary Kiln is used for making cement clinker and there are dry and wet methods to make cement.

    Metallurgy chemical Rotary kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine.

    Limestone Rotary Kiln is used for calcimine of high aluminum vandal ochre in refractory material industry, calotte and aluminum hydroxide in aluminum manufacturer, chrome sand ore and chrome powder ore in chemical plant.

    Features of Limestone Rotary Kiln

    1. Support device: advanced shaft structure, automatic temperature measurement and electrical heating device, meanwhile you can choose liquidity support .

    2. Catch wheel: mechanical wheel and hydraulic pressure

    3. Gearing:single driver or double driver. Control the revolution by YZD, DC motor and frequency variable motor.

    4. Cylinder tyre bolster: bolster has three types: fixed type, adjustable type and floating type. The structure is simple, maintenance and replacement are convenient without hurting the cylinder.

    5. Sealing equipment: there are many different design of sealing style for choice according to kiln models, including air cylinder edge sealing, spring edge sealing , graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing.

    Application of Limestone Rotary Kiln

    Limestone Rotary Kiln is commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries.

    Technical Parameters:

    Model

    Kiln

    Capacity(t/d)

    Rotary Speed
    (r/min)

    Power
    (kW)

    Weight
    (t)

    Diameter(m)

    Length(m)

    Slope(%)

    1.4×33

    1.4

    33

    3

    26

    0.39-3.96

    18.5

    48

    1.6×36

    1.6

    36

    4

    37

    0.26-2.63

    22

    52

    1.8×45

    1.8

    45

    4

    52

    0.16-1.62

    30

    78

    1.9×39

    1.9

    39

    4

    56

    0.29-2.93

    30

    78

    2.0×40

    2

    40

    3

    78

    0.23-2.26

    37

    119

    2.2×45

    2.2

    45

    3.5

    106

    0.21-2.44

    45

    128

    2.5×40

    2.5

    40

    3.5

    180

    0.44-2.44

    55

    150

    2.5×50

    2.5

    50

    3

    200

    0.62-1.86

    55

    187

    2.5×54

    2.5

    54

    3.5

    204

    0.48-1.45

    55

    196

    2.7×42

    2.7

    42

    3.5

    320

    0.10-1.52

    55

    199

    2.8×44

    2.8

    44

    3.5

    400

    0.437-2.18

    55

    202

    3.0×45

    3

    45

    3.5

    500

    0.5-2.47

    75

    211

    3.0×48

    3

    48

    3.5

    700

    0.6-3.48

    100

    237

    3.0×60

    3

    60

    3.5

    300

    0.3-2

    100

    310

    3.2×50

    3.2

    50

    4

    1000

    0.6-3

    125

    278

    3.3×52

    3.3

    52

    3.5

    1300

    0.266-2.66

    125

    283

    3.5×54

    3.5

    54

    3.5

    1500

    0.55-3.4

    220

    363

    3.6×70

    3.6

    70

    3.5

    1800

    0.25-1.25

    125

    419

    4.0×56

    4

    56

    4

    2300

    0.41-4.07

    315

    456

    4.0×60

    4

    60

    3.5

    2500

    0.396-3.96

    315

    510

    4.2×60

    4.2

    60

    4

    2750

    0.4-3.98

    375

    633

    4.3×60

    4.3

    60

    3.5

    3200

    0.396-3.96

    375

    583

    4.5×66

    4.5

    66

    3.5

    4000

    0.41-4.1

    560

    710

    4.7×74

    4.7

    74

    4

    4500

    0.35-4

    630

    849

    4.8×74

    4.8

    74

    4

    5000

    0.396-3.96

    630

    899

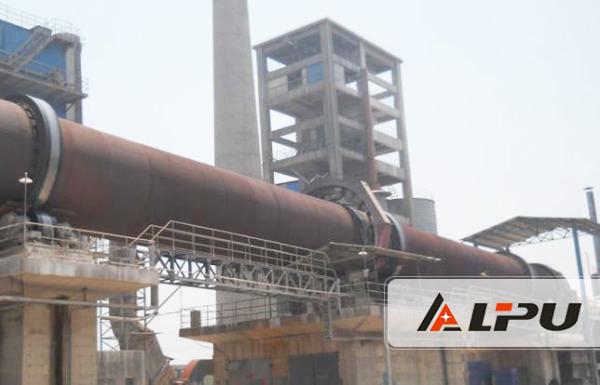

    Product Picture Show:
