    Large Air absorption Capacity Flotation Machine for Ferrous And Nonferrous Metal

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : SF4
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Large Air absorption Capacity Flotation Machine for Ferrous And Nonferrous Metal

    Large Air-absorption Capacity Flotation Machine for Ferrous And Nonferrous Metal

    Overview of Flotation Machine

    Flotation machine is widely used for roughing, concentrating and recovering flotation of nonferrous metals that include copper, lead, zinc, nickel and molybdenum, ferrous metal. It can also be used for separating nonmetallic minerals, like coal and fluorite.

    The SF flotation machine is undoubtedly the most important and versatile mineral processing technique and its application is being expanded to treat greater tonnages and to cover new areas. In flotation cell concentration, the mineral is usually transferred to the froth, or float fraction, leaving the gangue in the pulp or tailing.

    Benefit of Flotation Machine

    1. Large air-absorption capacity.

    2. Low energy consumption.

    3. Less reagents consumption.

    4. Easy to maintain and can be designed according to the users.

    5. The impeller has inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.

    Technical Parameters:

    SF series Flotation Machine

    Model

    Cell volume(m³)

    Impeller diameter

    (mm)

    Impeller speed

    (r/min)

    Capacity

    (m³/min)

    Main motor power

    (kW)

    Scraper motor power

    (kW)

    Weight

    (t/cell)

    SF0.37

    0.37

    300

    442

    0.2-0.4

    1.5

    1.1

    0.4

    SF0.7

    0.7

    350

    400

    0.3-1

    3

    1.1

    0.9

    SF1.2

    1.2

    450

    312

    0.6-1.2

    5.5

    1.1

    1.4

    SF2.8

    2.8

    550

    268

    1.5-3.5

    11

    1.1

    2.2

    SF4

    4

    650

    235

    2-4

    15

    1.5

    2.6

    SF8

    8

    760

    191

    4-8

    30

    1.5

    4.3

    SF16

    16

    850

    190

    5-16

    45

    1.5

    7.4

    BF series Flotation Machine

    Model

    Cell volume(m³)

    Impeller diameter

    (mm)

    Impeller speed

    (r/min)

    Air inflow

    (m³/m2.min)

    Capacity

    (m³/min)

    Power

    (kW)

    Weight

    (t/cell)

    BF2.8

    2.8

    550

    278

    0.9-1.1

    1.4-3

    11

    2.1

    BF4

    4

    650

    235

    0.9-1.1

    2.4-4

    15

    2.6

    BF6

    6

    700

    205

    0.9-1.1

    3-6

    18.5

    3.3

    BF8

    8

    760

    188

    0.9-1.1

    4-8

    22

    4.1

    BF10

    10

    760

    188

    0.9-1.1

    5-10

    22

    4.5

    BF16

    16

    850

    195

    0.9-1.1

    8-16

    37

    8.3

    BF20

    20

    850

    195

    0.9-1.1

    10-20

    45

    8.7

    BF24

    24

    920

    181

    0.9-1.1

    12-24

    45

    9

    KYF series Inflatable Flotation Machine

    Model

    Cell volume(m³)

    Impeller diameter

    (mm)

    Impeller speed

    (r/min)

    Air pressure of air blower

    (kPa)

    Max. Air inflow

    (m3/m2.min)

    Capacity

    (m3/min)

    Main motor power

    (kW)

    Scraper motor power

    (kW)

    Weight

    (t/cell)

    KYF1

    1

    340

    281

    ≥12.6

    2

    0. 2-1

    4

    1. 1

    0. 8

    KYF2

    2

    410

    247

    ≥14.7

    2

    0. 4-2

    5. 5

    1. 1

    1. 5

    KYF3

    3

    480

    219

    ≥19.8

    2

    0. 6-3

    7. 5

    1. 5

    1. 9

    KYF4

    4

    550

    200

    ≥19.8

    2

    1. 2-4

    11

    1. 5

    2. 2

    KYF8

    8

    630

    175

    ≥21.6

    2

    3. 0-8

    15

    1. 5

    4. 2

    KYF16

    16

    740

    160

    ≥25.5

    2

    4. 0-16

    30

    1. 5

    6

    KYF24

    24

    800

    150

    ≥30.4

    2

    4. 0-24

    30

    1. 5

    7. 5

    KYF38

    38

    880

    138

    ≥34.3

    2

    10-38

    37

    1. 5

    10. 3

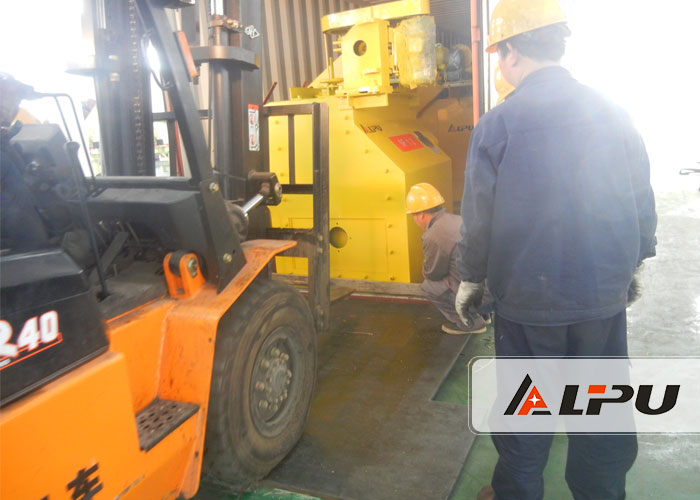

    The Delivery Site of Flotation Machine:
