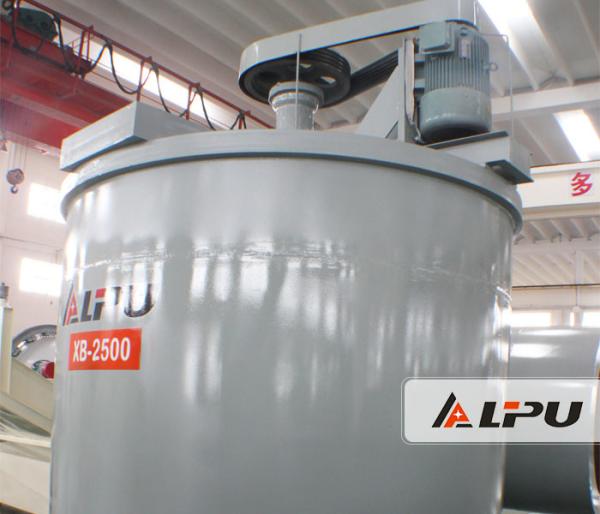

    Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : φ2.5×2.5
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³ Ore Dressing Plant

    Stainless Steel Agitation Leaching Tank / Agitator Effective Volume 11m³

    Description of Agitation tank:

    Agitation Tank is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries.

    Application of Agitation Tank

    1. Suitable to all kinds of metal ore & nonmetal ore, especially for the mixing before the ore dressing. It can also be used for mixing of the other nonmetal material.

    2. The using concentration cannot be greater than 30% ( by weight).

    3. The particle size of the fixed component is less than 1mm.

    Features and advantages of Agitator

    1) Low wear and tear
    2) Even mixing
    3) Simple structure
    4) Easy adjustment
    5) Less power consumption
    6) Strong agitating capacity
    7) Reliable operation and easy maintenance

    Technical Parameters:

    Model


    Tank specifications (mm)

    Effective volume

    (m3)

    Impeller speed

    (r/min)

    Power (kW)

    Weight

    (t)

    φ2.5×2.5

    2500×2500

    11

    49

    2.2

    2.8

    φ2.5×3.0

    2500×3000

    13

    49

    2.2

    3.1

    φ3.0×3.5

    3000×3550

    21

    41

    4

    5.4

    φ3.5×3.5

    3550×3550

    29

    41

    5.5

    5.5

    φ3.5×4.0

    3550×4000

    35

    36

    4

    6.5

    φ4.0×4.5

    4000×4500

    50

    33.5

    7.5

    7.5

    φ4.5×5.0

    4500×5000

    71.67

    33.5

    7.5

    10.8

    φ5.0×5.6

    5000×5600

    98

    31

    11

    13.4

    φ6.0×6.5

    6000×6500

    170

    28

    15

    20.7

    φ7.0×7.5

    7000×7500

    269

    20.4

    18.5

    33

    φ8.0×8.5

    8000×8500

    420

    18.25

    22

    41

    φ8.5×9.0

    8500×9000

    480

    17

    22

    48.5

    φ9.0×9.5

    9000×9500

    572

    17

    37

    57

    φ9.5×10.0

    9500×10000

    673

    14

    37

    65

    φ10×10.5

    1000×10500

    785

    14

    45

    78

    Customer Visit for Agitation Tank:
