    Mining Jaw Crushing Machine Stone Crusher for Primary / Secondary Crushing

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : PEV900×1200
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Mining Jaw Crushing Machine Stone Crusher for Primary / Secondary Crushing

    Mining Jaw Crushing Machine Stone Crusher for Primary / Secondary Crushing
    Jaw Crusher Introduction:
    Jaw Crusher is one of the most popular stone crusher in the world, which is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320MPa.
    Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, chemistry industries, etc. Many models are available according to your different fineness requirements.
    Jaw Crusher Structure:
    Jaw crusher structure consist of main frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate back seat, adjusting screw gap, the reset spring, fixed jaw plate and movable jaw and other components.
    Jaw Crusher Working Principle:
    Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done.
    When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room.
    With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.
    Technical parameters:

    Model

    Max Input size

    (mm)

    Outlet size

    (mm)

    Capacity

    (t/h)

    Power

    (kW)

    Overall dimension

    L×W×H(mm)

    Weight (t)

    PEV400×600

    340

    40-80

    20-65

    30-37

    2500×1750×1950

    8.5

    PEV500×750

    425

    45-150

    45-107

    45-55

    3100×1980×2290

    11.5

    PEV600×900

    510

    75-180

    100-200

    55-75

    3450×2360×2780

    17

    PEV750×1100

    640

    80-190

    140-320

    90-110

    3750×2580×3180

    24

    PEV860×1100

    730

    100-200

    200-500

    110-132

    4870×2850×3170

    32

    PEV900×1200

    760

    100-220

    220-600

    110-132

    3500×2850×3290

    48

    PEV1000×1200

    850

    150-300

    280-750

    132-160

    4700×2930×3460

    52

    PEV1200×1500

    1020

    180-340

    350-950

    160-220

    6380×5310×3710

    83

    PEV1500×1800

    1250

    210-360

    500-1100

    280

    7460×6240×4250

    122

    PEV250×1000

    210

    25-50

    20-50

    30-37

    1680×2050×1370

    7

    PEV250×1200

    210

    25-50

    25-65

    37-45

    1680×2180×1370

    8

    PEV300×1300

    250

    20-90

    30-105

    55-75

    2150×2390×1590

    11

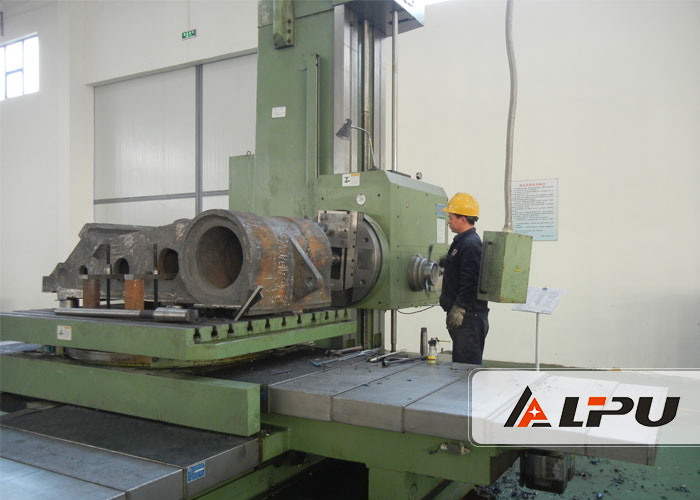

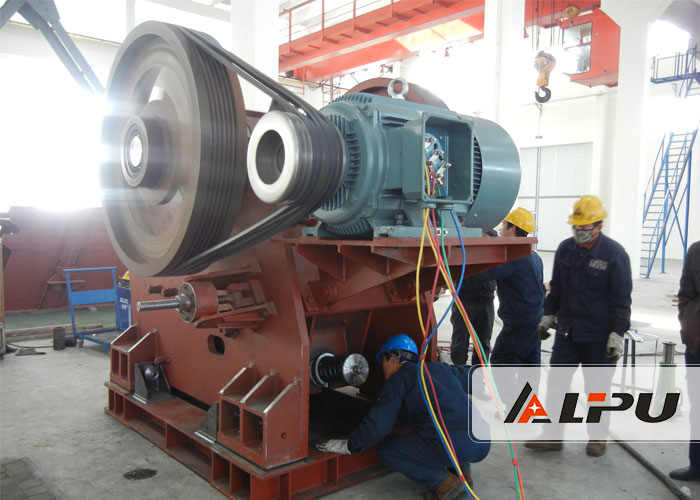

    Jaw Crusher Manufacturing in Our Factory:
