Three Cavity PFW1315 Stone Impact Crusher Mineral Crushing Equipment

Brief Introduction of Stone Impact Crusher

The Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.

Working Principle of Stone Impact Crusher

When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet.

Features and Advantages of Stone Impact Crusher

1. Cubic-shaped end products;

2. Adjustable end products sizes, simple crushing process;

3. The board hammer is made of high chrome, abrasion-resistant, and with powerful impacting force;

4. Non-key connected, easy to maintain, cost-saving;

5. Sound construction and high efficiency.

Technical Parameters-PFW Two-cavity Impact Crusher:

Technical Parameters-PFW Three-cavity Impact Crusher:

Product Picture Show:

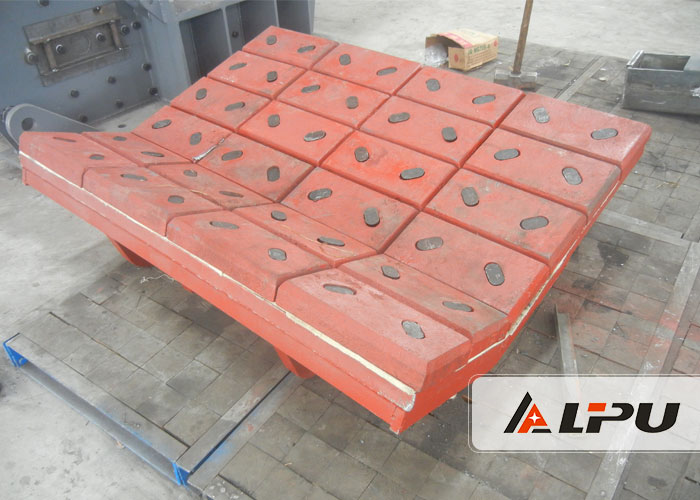

Impact Crusher Liner:

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
