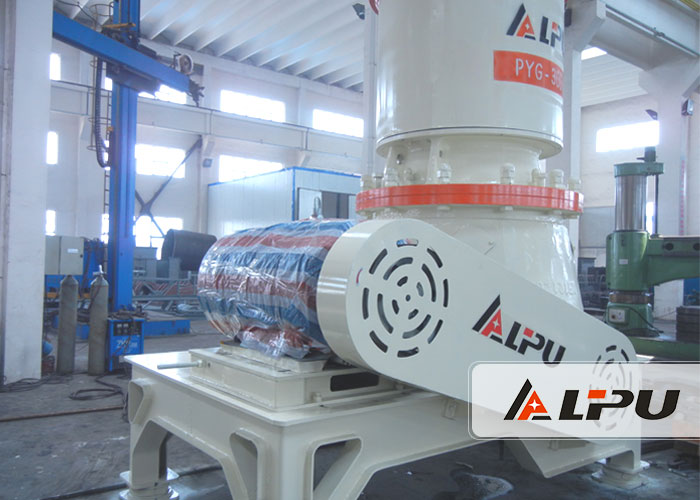

Mining Equipment Single Cylinder Hydraulic Cone Crusher for Gold Ore Iron Ore

Brief Introduction of Hydraulic Cone Crusher :

Single Cylinder Hydraulic Cone Crusher adopts the best combination of crushing frequency and eccentricity, so the content of fine crushed products is higher. Therefore, the efficiency of more fine products but less grinding is very significant. The power consumption of crushing and grinding is also reduced greatly.

Perfect combination of high crushing efficiency and highly efficient chamber makes larger capacity than other crushers. More materials are crushed in different layers, so the shape of final product is evenly cubic. Hydraulic insurance, Hydraulic adjustment and method for cleaning chamber make operation easier and maintenance much more convenient. It is easier to realize automation. This series of Single Cylinder Hydraulic Cone Crusher has much less breakdown, the rate of operation is over 85%, so the whole cost is reduced greatly.

Working Principle of Hydraulic Cone Crusher:

Single Cylinder Hydraulic Cone Crusher Crushing process is completed between the fixed cone and eccentric rotating moving cone. Horizontal axis of crusher is driven by motor through the V-belt, the horizontal axis drives the eccentric cover by the gear. Eccentric cover makes main shaft rotate to cause eccentricity. Materials enter crushing chamber through upper inlet of crusher, and crushed products are discharged out through the lower outlet.

Advantages of Hydraulic Cone Crusher:

1. Human design and hydraulic adjustment of discharge outlet saves time and work. Adjustment can be controlled by buttons.

2. Single hydraulic system adjusts main shaft and body, the body can rise and decline integrally to adjust discharge size, so slope of side cylinder and upper frame can be avoided.

3. Working pressure system can be adjusted hydraulically; pressure adjusting system can discharge super hard materials to protect the machine.

4. Spare parts can be changed easily. The rolling mortar wall and cone body combined stably after precise design, and there’s no need to fill again, so time to change spare parts can be saved. Stuffing is not necessary to be filled as the installation of rolling mortar is very stable.

5. Hydraulic pressure of the whole machine is low, so the pressure to hydraulic parts and main engine is also low, hydraulic system is more durable and stable.

6. The size and weight of this machine are relatively small, so installation and transportation are very convenient.

Technical Data:
