    Vertical Shaft Impact Crusher / Artificial Sand Making Machine Feed Size 50mm

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : VCⅡ8622
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Vertical Shaft Impact Crusher / Artificial Sand Making Machine Feed Size 50mm

    Vertical Shaft Impact Crusher / Artificial Sand Making Machine Feed Size 50mm

    Overview of Sand Making Machine

    Sand making machine is the latest product of our company which absorbed the advanced technology from German. It can provide the best material for the highway, railway, construction project and concrete mixing station, etc. Lower cost and good performance decide that this kind of equipment is a preferred choice for artificial sand making or stone reshaping.

    Working Principle of Sand Making Machine

    The entire center feeding: Material falls into the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then it is thrown out from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining( rock to rock) or strike back block( rock to iron), rebounded and stroke to the top of eddy cavity in the inclined-up direction. The it moves along deflection-down, and forms a continuous material curtain with the material form the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.

    Performance Features of Sand Making Machine

    1. Large capacity, stable running.

    2. Low consumption of wearing parts.

    3. Perfect product shape, suit for sand making and stone reshaping.

    4. Thinning oil lubricant and automatic maintenance.

    5. Hydraulic device for easy maintenance and operation.

    Technical Parameter :

    Model

    VCⅡ7515

    VCⅡ8622

    VCⅡ9532

    VCⅡ1145

    Capacity(t/h)

    Center

    feeding

    70-150

    120-220

    170-320

    260-450

    Center

    and side

    feeding

    90-200

    150-290

    220-420

    340-590

    Max. Feed

    Size(mm)

    40

    50

    50

    50

    Double

    Motor

    Power(kW)

    110-150

    180-220

    260-320

    400-440

    Overall

    Dimension/L×W×H(mm)

    4100×2000×3200

    4500×2100×3400

    4800×2250×3800

    5200×2400×4200

    Transportation

    Dimension/

    L×W×H(mm)

    4100×2000×2100

    4500×2100×2200

    4800×2250×2600

    5200×2400×2850

    Weight(t)

    stone

    strike

    stone” crushing

    cavity

    7.8

    9.2

    12

    15

    stone strike

    iron” crushing

    cavity

    8.9

    10.5

    13.8

    17.5

    Thin Oil Lubrication Station

    Double Oil

    Pump Power(kW)

    2×0.37

    Safety

    Protection

    Double Oil Pump feed each other; Automatic shutdown when

    no oil return; Water cooling system; Automatic heating in low temperature.

    Oil Tank

    Heating

    Power(kW)

    2

    Overall Dimension/L

    ×W×H(mm)

    820×520×1270

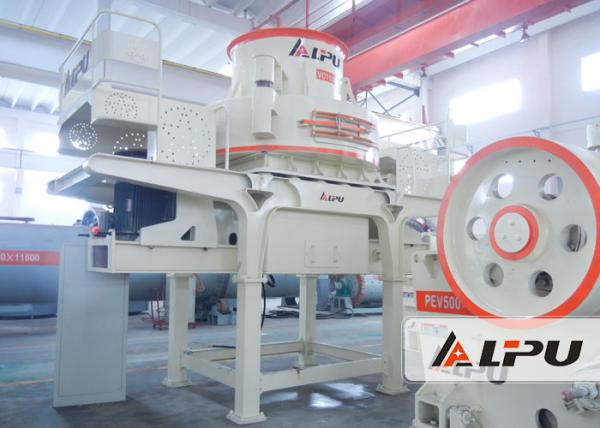

    Product Picture Show :
