    Customized Two Stage Mobile Crushing Plant / Mobile Jaw Crusher For Mining

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 938E69
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Customized Two Stage Mobile Crushing Plant / Mobile Jaw Crusher For Mining

    Customized Two Stage Mobile Crushing Plant / Mobile Jaw Crusher For Mining

    Introduction of Mobile Jaw Crusher Plant

    Mobile Jaw Crushing Plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.

    Mobile crushing plant has high on-board chassis, short wheel base and tight turning radius, which is convenient for road transportation, especially for driving to crushing sites that are difficult to access. The set-up time of the portable crushing plant are greatly reduced, compared with the stationary one.

    Features of Mobile Jaw Crusher Plant

    1. Built with high quality jaw crusher, cone crusher and impact crusher

    2. Feeder, screen and belt conveyor on board

    3. Tractive steering shaft, convenient for road transportation

    4. Integrated with landing gears, quick and convenient installation on site

    5. Integrated motor and control panel

    Customized Production and Flexible Configuration

    According to different customers' requirements, portable crushing plant can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three-stage crushing plant with primary, secondary, and tertiary crushing. Likewise, portable crushing plant can be easily adjusted to suit the crushing application by choosing feeding to crusher or feeding to screen options.

    We can provide special mobile crushers based on customers' site, material, and particle shape requirements, etc. Such as self-load belt conveyor, multiple machines combined type, single machine type and so on.

    Model and Specification:

    ItemsUnit938E691142E7101349E91211349EW861349EW110
    Transportation lengthmm1191013110146101461015410
    Transportation widthmm25502550195015501950
    Transportation heightmm36504450450045004500
    Max. lengthmm1211013310146501465015460
    Max. widthmm29002960331033103310
    Max. heightmm40604820530053005700
    Weightt3957836592
    Tyre configurationDual axialTri-axialTri-axialTri-axialTri-axial
    Jaw crusherPE600*900PE750*1060PE900*1200PE860PE1100
    Max. feeding sizemm480630750730940
    Adjustment range of discharging mouthmm65-16080-140100-20075-225150-275
    Processing capacityt/h90-180110-320220-450150-500300-650
    Vibrating feederGZD960*3800GZD1100*4200GZD1300*4900GZD1300*4900GZD1300*4900
    Main belt conveyorB800*8.5MB1000*9MB1200*9.5MB1200*9.5MB1200*9.5M
    Side discharging belt conveyor (optional)B450*3MB500*3.5MB650*4MB650*4MB650*4M
    Genset (optional)kw160200220250300
    De-ironing separator (optional)RCYD(C)-8RCYD(C)-10RCYD(C)-12RCYD(C)-12RCYD(C)-12

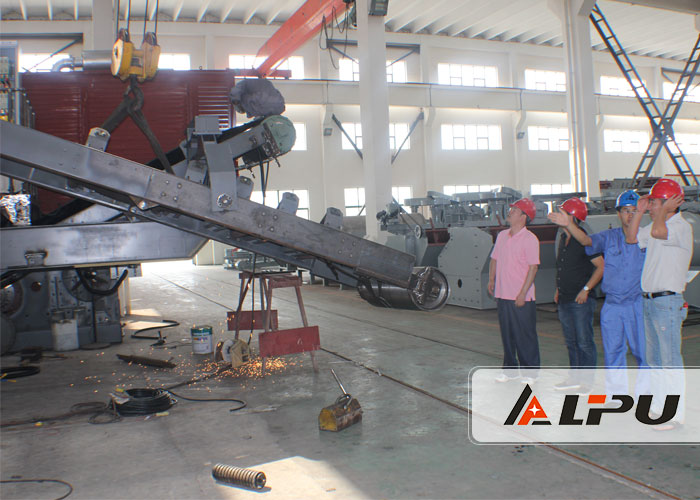

    Customers Visit:
