    Energy Saving Quartz Stone Crushing Plant / Jaw Crusher Machine

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : According to customer
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Energy Saving Quartz Stone Crushing Plant / Jaw Crusher Machine

    Energy Saving Quartz Stone Crushing Plant , Jaw Crusher Machine for Mining Quarry

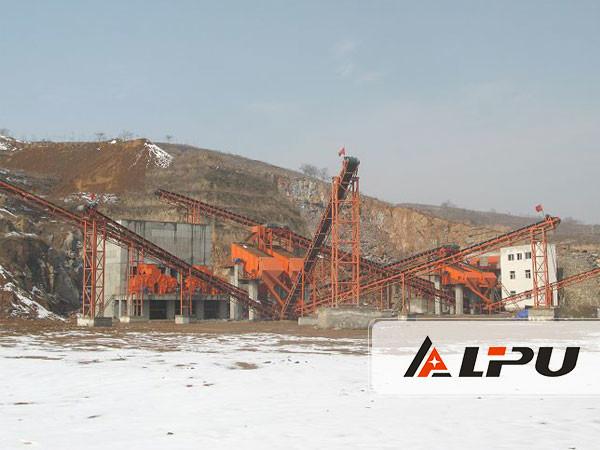

    Introduction of Quartz Stone Crushing Plant

    Quartz stone crushing plant is mainly composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centralized electronic control. The designed output is 50-800t/h, and cone crusher and dust removing equipment can be equipped to satisfy different processing needs of the customers.

    Application: Highway pavement material, sand and gravel aggregate for high speed passenger railway line, hydro power station.

    Stone Crushing Plant Process:

    First the raw materials be send to primary crusher (jaw crusher) by vibrating feeder, after first-stage crush, material will be transported to the secondary crusher (impact crusher) by belt conveyor to get the rather fine size gravel, then these products be separated by vibrating screen to meet the size customer request.


    Vibrating feeder + PE series jaw crusher + PY series cone crusher + Belt conveyor + YK series circular vibrating screen;


    Vibrating feeder + PE series jaw crusher + PF series impact crusher + vertical shaft impact crusher + Belt conveyor + YK series circular vibrating screen.

    Advantages of Stone Crushing Plant:

    1. For harshest mining and quarrying environments.

    2. All three screens are adjustable to enable production of varying grading.

    3. Once sized, products are segregated by two side discharge conveyors which eliminate contamination

    4. Variable amplitude on the feeder and grizzly ensures maximum efficiency regardless of the feed material

    5. Variable speed vibrating feeder provides for optimum control to deliver maximum production at all times

    5. Both side conveyors can fold up manually for transport.

    6. Rock screen does not require a dedicated operator, which further reduces overheads and running costs

    7. Tipping of the primary grizzly is by remote control from the loader

    8. All safety protection shutdowns and guarding are fitted as standard to meet safety regulations.

    Technical Data:

    Processing

    (t/h)

    Major equipment type, size, number
    Feeding equipment

    Crushing

    equipment

    Crushing

    equipment

    Classification and screening

    equipment

    Belt Conveyor(m)Installed power(kw)
    30GZD8030PE400×600PF10082YK123560-90120
    50GZD8530PE400×600PF10083YK1235100-130140
    80GZD9636PE500×750PF10103YK1545130-160200
    100GZD9638PE600×900PF12103YK1545140-180280
    150GZD1142PE750×1060PF12143YK1854200-240300
    200GZD1142PE750×1060PF13153YK1860200350
    250GZD1149PE750×1060PF1214/23YK2160200400
    300GZD1249PE900×1200PF1315/23YK2160250450
    350GZD1349PE1000×1200PF1315/23YK2460250500
    450GZD1349PE1000×1200PF1315/2 PF12143YK2160/2350600

    Crusher Machine for Stone Crushing Plant:
