    Energy Saving Intermittent Ball Mill For Quartz Clay Iron Ore 34r/Min

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 1200×1400
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Energy Saving Intermittent Ball Mill For Quartz Clay Iron Ore 34r/Min

    Easy Operation Intermittent Ball Mill / Ceramic Ball Mill For Quartz Clay Iron Ore

    Product Introduction

    Intermittent ball mill, also named as ceramics ball mill, adopts both dry and wet methods to mill feldspar, quartz, clay, iron ore and other raw materials by times. Intermittent ball mill (ceramics ball mill) is mainly used for the mixing and milling of materials, featured by even fitness and energy saving. Dry milling and wet milling are applicable.

    Main Function

    Intermittent ball mill is the key equipment to crush materials after breaking. It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal processing and the glass ceramic production industry, and is able to carry out dry or wet milling of various ores and other materials.

    Principle of Operation

    Intermittent ball mill consists of feeding part, discharging part, and feedback part, transmission part (gear motor, small transmission gear, and motor and control panel), featured by favorable abrasive resistance, stable operation and reliable working. Its hallow shaft adopts steel castings and the inner lining could be replaced. Main gear for feedback adopts casting hobbing. Inside the cylinder is a wear resistant lining board with favorable wear resistance.

    Features

    Energy saving, novel structure, convenient operation, safe use, stable and reliable performance, suitable to the mixing and milling operations of general and special materials.

    Technical Data:

    ModelEffective volume(m³)Rotary speed(r/min)Once feeding quantity(t)Power(kw)Weight /without liner(t)
    φ600×8400.23550.11.51.35
    φ800×9400.47400.22.21.42
    φ950×10200.72340.331.5
    φ1200×14001.58340.542.5
    φ1450×17602.9126.51113.5
    φ1800×21005.3231.5154.5
    φ2000×23007.2162225.9
    φ2240×26001018.73307.4
    φ2450×280013164379.5
    φ2700×290016.61653710.5
    φ2800×3100191564512.4
    φ2850×400025.51485516
    φ3000×465032.516149020.8
    φ3200×465037.516189023
    φ3400×46504312.5239025
    φ3400×63005712.53011030
    φ3600×63006411.83611032
    φ3600×65006611.83811032
    φ3600×67006811.84013235
    φ3600×71706811.84011035
    φ4000×786099106018548
    φ4100×112001471010031573

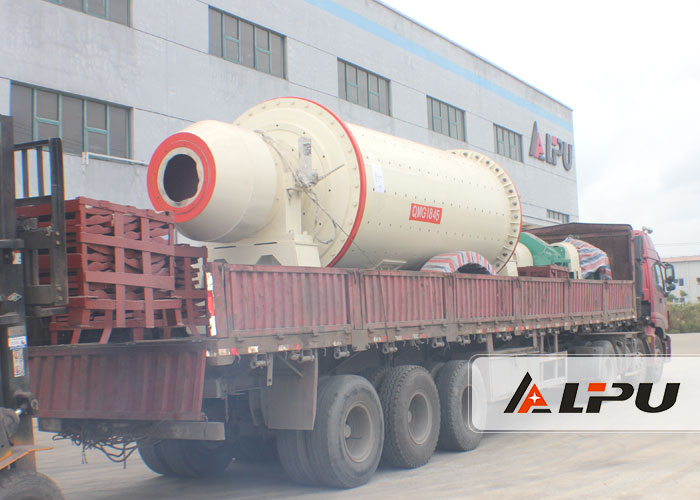

    Ball Mill Delivery Site:
