    Large Capacity Customized Mining Conveyor Systems Width 1200mm

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : 1200
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Large Capacity Customized Mining Conveyor Systems Width 1200mm

    Large Capacity Customized Mining Conveyor System Belt Conveyor Width 1200mm

    Introduction of Belt Conveyor

    The belt conveyor produced by our company has the strong points of large conveying amount, simple structure, easy maintenance, high standardization degree, etc, which is widely used in mining, metallurgy, coal and other industries.

    The belt conveyor can be used to transfer bulk materials or materials in pieces. According to different transferring requirements, the transferring system can be of only one belt conveyor or consists of several conveyors, or combined with other transferring equipment. The belt conveyor can be installed horizontally or aslope to meet different transferring requirements.

    Features of Belt Conveyor

    1. High capacity.

    2. Standard parts.

    3. Simple structure.

    4. Easy Maintenance.

    5. Easy to operate.

    6. The length of the belt is customized.

    Technical Parameters:

    Belt width (mm)

    Length (m) / Power (kW)

    Capacity (t/h)

    500

    ≤12/3

    12-20/3-5.5

    20-30/5.5-7.5

    40-80

    650

    ≤12/4

    12-20/4-5.5

    20-30/5.5-11

    80-120

    800

    ≤10/4

    10-15/4-5.5

    15-30/5.5-15

    120-200

    1000

    ≤10/5.5

    10-20/5.5-11

    20-40/11-22

    200-320

    1200

    ≤10/7.5

    10-20/7.5-15

    20-40/15-30

    290-480

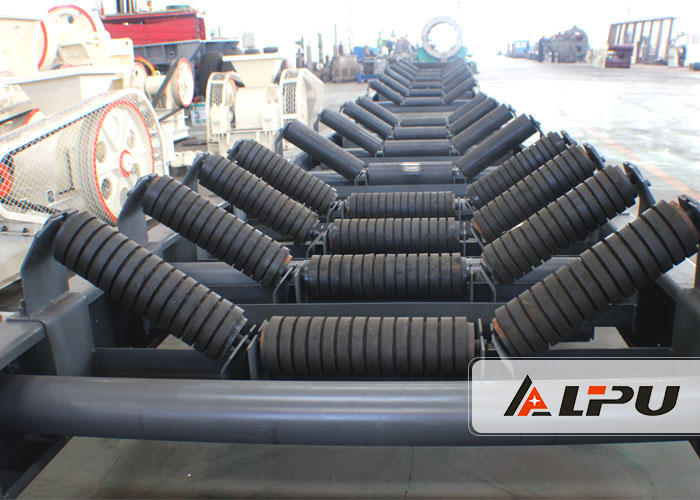

    Product Picture Show:


    Quality Large Capacity Customized Mining Conveyor Systems Width 1200mm for sale
