    Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : 1000
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Continuous Width 1000mm Mining Coal Conveyor Belt Systems 290-480t/H

    Continuous Mining Conveying System Belt Conveyor Machine Belt Width 1000mm

    Overview of Belt Conveyor Machine

    Belt conveyor machine is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force.

    Features of Belt Conveyor Machine

    Belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. It is widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it is a very important component of nonstandard machinery.

    Working Principle of Belt Conveyor Machine

    Belt conveyor machine consist of standard parts, which are advanced and simple in structure, easy to maintain. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipment. It can be installed horizontally or aslope to meet the needs of different transfer lines.

    Belt conveyor can be operated in the circumstance temperature range from -20°C to +40°C. The temperature of transferred material by this belt conveyor should be lower than 50°C.

    Technical Parameters:

    Belt width (mm)

    Length (m) / Power (kW)

    Capacity (t/h)

    500

    ≤12/3

    12-20/3-5.5

    20-30/5.5-7.5

    40-80

    650

    ≤12/4

    12-20/4-5.5

    20-30/5.5-11

    80-120

    800

    ≤10/4

    10-15/4-5.5

    15-30/5.5-15

    120-200

    1000

    ≤10/5.5

    10-20/5.5-11

    20-40/11-22

    200-320

    1200

    ≤10/7.5

    10-20/7.5-15

    20-40/15-30

    290-480

    Belt Conveyor Working Site:

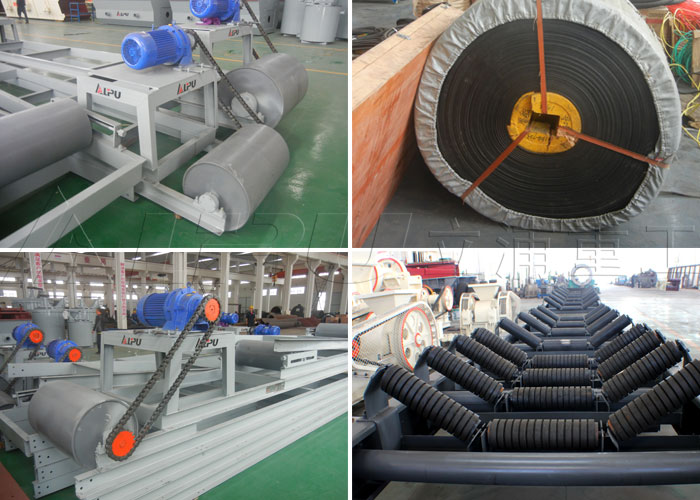

    Belt Conveyor In Our Factory:
