MB Series Rod Mill Mine Grinding Mill for Feldspar Quartz Iron Ore Copper Ore

Introduction of Rod Mill

MB series rod mill has certain selective grinding effect in the grinding process because of the grinding medium and ore are line contacted. The product particle size is uniform, and excessive grinding ore grain is little. It is widely used in fine crushing and grinding operation of feldspar, quartz, abrasive, refractory material, cement, steel grit, slag, copper ore, iron ore, gold ore grit and other hard or brittle material.

Advantages of Rod Mill

1. When the diameter of rod mill is less than 3200mm, its conventional configuration is using rolling bearing instead of bearing bush sliding bearing energy saving 10% - 20%;

2. When the diameter of rod mill is more than 2700mm, its conventional configuration is using slow driving for maintenance installing liner use;

3. When the diameter of rod mill is less than 1500mm, its conventional configuration is monolithic large chassis reducing the installation time and installation requirements;

4. When the power of rod mill is less than 110 KW, it uses cage asynchronous motor; When the power of rod mill is more than 110 KW, it uses wire wound asynchronous motor; When the power of rod mill is more than 400 KW, it can use high pressure (6 KV or 10 KV) asynchronous motor or the TDMK series high voltage (6 KV or 10 KV) synchronous motor;

5. Drum Feeder Spiral Feeder and Joint Feeder are available for meeting different working condition;

6. The gear lubrication mode has grease lubrication thin oil lubrication and automatic oil mist lubrication for meeting different working condition;

7. The bearing lubrication has manual and electric grease lubrication pump to select and it can realize lubrication automation;

8. There are a variety of liner plates type to select. Compared to A series standard type B series energy-saving type can save energy 10% - 20%.

Technical Data:

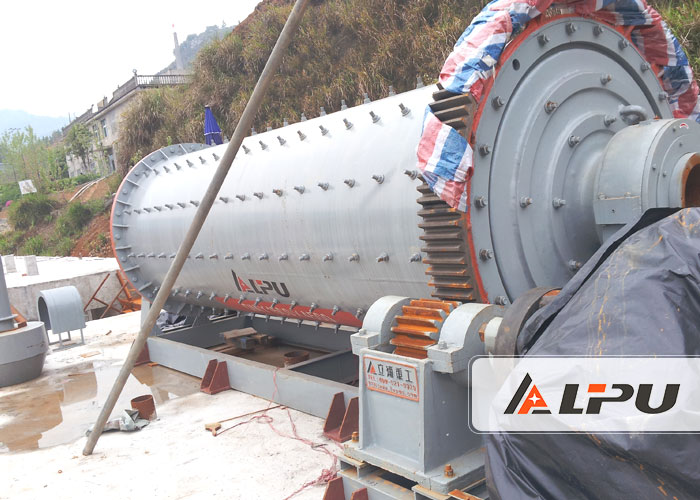

Ball Mill Working Site:

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.
