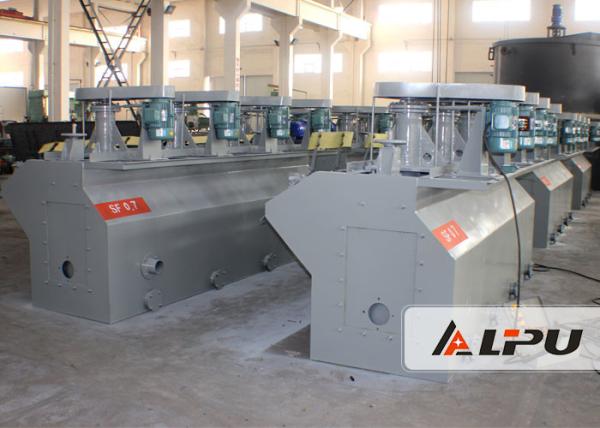

    Copper Beneficiation Ore Dressing Plant Flotation Separator Machine 400 r/min

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : SF0.7
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Copper Beneficiation Ore Dressing Plant Flotation Separator Machine 400 r/min

    Copper Beneficiation Plant Flotation Separator Machine Impeller Speed 400 r/min

    Introduction of Flotation Machine:

    Flotation Machine can be used to separate nonferrous metal, ferrous metal, heavy metal, nonmetallic mine, chemical material such as gold, copper and recycling minerals.

    Working Principle of Flotation Machine

    The impellers are driven through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand it stirs ore slurry and mix with medication to form the mineralized froth. To adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board. Each chute can inhale gas, sink magma, separate. No assisting equipment are required, and it must be levelly installed.

    Features of Flotation Machine

    1. Large inhaling capacity and low energy consumption;

    2. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;

    3. Process is easy to be changed;

    4. Reasonable circulation of pulp decreases coarse sand sedimentation;

    5. Automatic controlling device makes adjustment more convenient.

    Technical Parameters:

    SF series Flotation Machine

    Model

    Cell volume(m³)

    Impeller diameter

    (mm)

    Impeller speed

    (r/min)

    Capacity

    (m³/min)

    Main motor power

    (kW)

    Scraper motor power

    (kW)

    Weight

    (t/cell)

    SF0.7

    0.7

    350

    400

    0.3-1

    3

    1.1

    0.9

    Flotation Machine Customer Site in Canada:

    Lipu Flotation Machine Shipped to South Korea:
