    Vibration Frequency 1450 R/Min Sand Dewatering Screen In Sand Washing Plant

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : GT1530
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Vibration Frequency 1450 R/Min Sand Dewatering Screen In Sand Washing Plant

    Vibration Frequency 1450 R/Min Sand Dewatering Screen In Sand Washing Plant

    Introduction of Sand Dewatering Screen

    Sand dewatering screen is be widely used in discharging dried tailing, sand washing plant, fine mineral dewatering, chip removing, carbon-in-pulp separation, etc. Screen mesh can be various types like polyurethane, nylon, stainless steel wire, manganese steel wire, industrial filter cloth, etc.

    It has features of high vibration strength, large sieving area, the angle of screen box can be adjusted, compact structure, high performance, etc.

    Working Principle of Sand Dewatering Screen

    The product adopts flange vibrator as power supply: The two motors that rotate synchronously and reversely and centrifugal force is produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts, so the structure is stable and durable.

    Technical Parameters:

    Model

    Vibration frequency

    (r/min)

    Screen Mesh Size

    (mm)

    Capacity

    (t/h)

    Power

    (kW)

    Overall dimension

    (L×W×H)(mm)

    Weight

    (t)

    GT1530

    1450

    0.1-2

    20-60

    2×2.25

    3440×2180×2400

    3

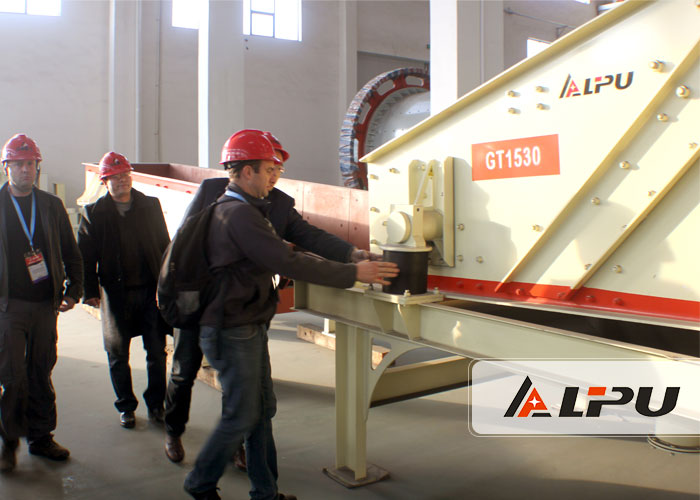

    Customer Visit for Dewatering Screen:
