30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap 30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant from wholesalers

    Buy cheap 30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant from wholesalers
    • Buy cheap 30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant from wholesalers
    • Buy cheap 30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant from wholesalers

    30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 1.8×45
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant

    30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln in Cement Plant​

    Introduction of Rotary Kiln

    The rotary kiln belongs to construction equipment. According to different material, the rotary kiln can be divided into: cement kiln, metallurgy kiln, and limestone kiln.

    The cement kiln is mainly used for calcimine of cement clinker; there are dry and wet types. The metallurgy kiln is used in metallurgy industry and iron works for lean iron ore, chromium ore and ferronickel ore calcimine. Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry; for calcimine of calotte and used aluminum hydroxide in aluminum vandal manufacturer; for claiming of chrome sand ore and chrome powder ore in chemical plant.

    Lime kiln (active lime kiln) is used for calcimine of active lime and dolomite in iron works and alloy works.

    Features of Rotary Kiln

    1. Simple structure

    2. Solid parts

    3. Stable operation

    4. Convenient and reliable production control

    5. High capacity

    Structure of Rotary Kiln:

    The kiln is composed by the cylindrical shell, roller supporting device, supporting device with thrust roller, driving gear unit movable kiln head, sealing device at kiln inlet, coal dust pipe device, etc.

    The kiln shell is designed to keep some inclination to level. It is supported by the roller supporting device and equipped with thrust roller device to control the up and down moving of the shell. The driving system is equipped not only the main driving gear unit but also the auxiliary driving used to keep the shell rotating even when the main power is broken so as to prevent the shell from any bending and distortion. As the kiln head and tail are sealed by advanced technology, the sealing of the kiln is fairly reliable.

    Technical Parameters:

    Model

    Kiln

    Capacity(t/d)

    Rotary Speed
    (r/min)

    Power
    (kW)

    Weight
    (t)

    Diameter(m)

    Length(m)

    Slope(%)

    1.4×33

    1.4

    33

    3

    26

    0.39-3.96

    18.5

    48

    1.6×36

    1.6

    36

    4

    37

    0.26-2.63

    22

    52

    1.8×45

    1.8

    45

    4

    52

    0.16-1.62

    30

    78

    1.9×39

    1.9

    39

    4

    56

    0.29-2.93

    30

    78

    2.0×40

    2

    40

    3

    78

    0.23-2.26

    37

    119

    2.2×45

    2.2

    45

    3.5

    106

    0.21-2.44

    45

    128

    2.5×40

    2.5

    40

    3.5

    180

    0.44-2.44

    55

    150

    2.5×50

    2.5

    50

    3

    200

    0.62-1.86

    55

    187

    2.5×54

    2.5

    54

    3.5

    204

    0.48-1.45

    55

    196

    2.7×42

    2.7

    42

    3.5

    320

    0.10-1.52

    55

    199

    2.8×44

    2.8

    44

    3.5

    400

    0.437-2.18

    55

    202

    3.0×45

    3

    45

    3.5

    500

    0.5-2.47

    75

    211

    3.0×48

    3

    48

    3.5

    700

    0.6-3.48

    100

    237

    3.0×60

    3

    60

    3.5

    300

    0.3-2

    100

    310

    3.2×50

    3.2

    50

    4

    1000

    0.6-3

    125

    278

    3.3×52

    3.3

    52

    3.5

    1300

    0.266-2.66

    125

    283

    3.5×54

    3.5

    54

    3.5

    1500

    0.55-3.4

    220

    363

    3.6×70

    3.6

    70

    3.5

    1800

    0.25-1.25

    125

    419

    4.0×56

    4

    56

    4

    2300

    0.41-4.07

    315

    456

    4.0×60

    4

    60

    3.5

    2500

    0.396-3.96

    315

    510

    4.2×60

    4.2

    60

    4

    2750

    0.4-3.98

    375

    633

    4.3×60

    4.3

    60

    3.5

    3200

    0.396-3.96

    375

    583

    4.5×66

    4.5

    66

    3.5

    4000

    0.41-4.1

    560

    710

    4.7×74

    4.7

    74

    4

    4500

    0.35-4

    630

    849

    4.8×74

    4.8

    74

    4

    5000

    0.396-3.96

    630

    899

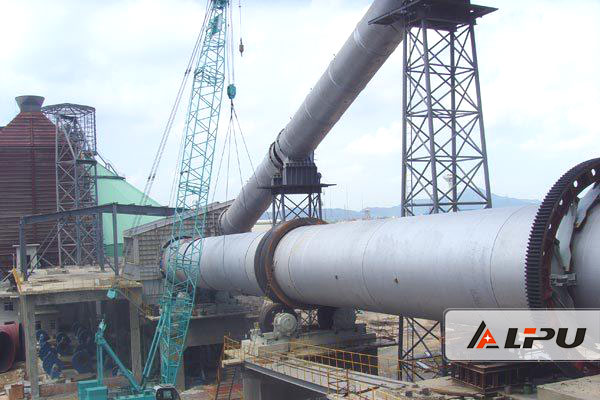

    Product Picture Show:

    Product Tags:

    rotary kiln dryer



    lime rotary kiln


    Quality 30 kw Stable Operation Rotary Kiln Incinerator Cement Kiln for Cement Plant for sale
