    Vibration Frequency 970 r/min Vibrating Feeder in Sandstone Production Line

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : GZD9538
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Vibration Frequency 970 r/min Vibrating Feeder in Sandstone Production Line

    Vibration Frequency 970 r/min Vibrating Feeder in Sandstone Production Line

    Application of Vibrating Feeder:

    The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.

    Working Principle of Vibrating Feeder:

    There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve, then fall down. The materials will move forward on the slope surface of the feeder.

    Technical Parameters:

    Model

    Vibration frequency(r/min)

    Double-amplitude(mm)

    Capacity (t/h)

    Power

    (kW)

    Overall dimension

    (mm)

    Weight (t)

    GZD9538

    970

    4-6

    120-210

    2×3

    3910×1520×1460

    3

    GZD1149

    970

    4-6

    160-320

    2×5.5

    5010×1670×1710

    4.3

    GZD1249

    970

    4-6

    180-380

    2×5.5

    5010×1770×1710

    4

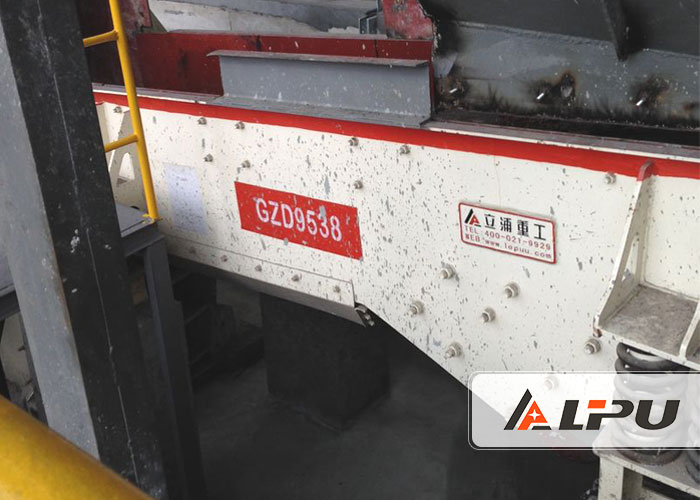

    Working Site of Vibrating Feeder:
