    Flexible Configuration Portable Crusher Plant , Mobile Concrete Crusher

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : YG0830E4060-3S1548E25120
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Flexible Configuration Portable Crusher Plant , Mobile Concrete Crusher

    Flexible Configuration Portable Crusher Plant , Mobile Concrete Crusher

    Mobile Crushing Plant Application

    Mobile crusher plant is an integrated machine of vibrating feeder, stone crusher, vibrating screen and other auxiliary equipment. The mobility of mobile crusher can overcome the limited by the crushing place, and reduces high material transportation cost meanwhile.

    Mobile crusher has several types. In terms of the stone crusher types, mobile crusher plant can be divided into three types: mobile jaw crusher, mobile cone crusher and mobile impact crusher. Mobile jaw crusher is used for primary crushing and the other two are used for fine crushing. Each mobile crusher plant can work as a whole complete individual. But there are some special mobile crushers, which a machine body includes a complete crushing plant.

    Mobile crusher can crush materials on site or working nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.

    Mobile Crushing Plant Features

    1. Move easily. Mobile crusher can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.

    2. Compact structure and simple operation. Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, Mobile crusher plant can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.

    3. Save the cost. By crushing the materials on site, the transportation cost of mobile crusher is reduced.

    4. Wide applicability. The mobile crusher plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to the requirement of customers (firstly screening then crushing, or firstly crushing then screening).

    5. Stable performance and convenient maintenance. Equipped with crushers, vibrating feeders, and vibrating screens, the mobile crusher shows high quality and reliable performance. Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.

    6. Flexible configuration. Mobile crusher can be customized according to customers’ requirement on working site, materials and particle shape. Examples of customized machines include single units, combined units, units with self-discharged belt conveyors.

    Model and Specification:

    Model

    YG0830E4060-3S1548E25120

    Feeder Model

    GZD0830

    Primary Crusher Model

    PEV400×600

    Secondary Crusher Model

    PEV250×1200

    Vibrating Screen Model

    3YK1548

    Tyre Parameters

    Double- axle

    Return Belt Conveyor Model

    B500×14m

    Receiving Belt Conveyor Model

    B500×10m

    Left Belt Conveyor Model

    B500×8m

    Right Belt Conveyor Model

    B500×8m

    Belt Conveyor Under the Screen Model

    B500×8m

    Transport length(mm)

    14500

    Transport Width(mm)

    3000

    Transport Height (mm)

    4200

    Weight(t)

    37

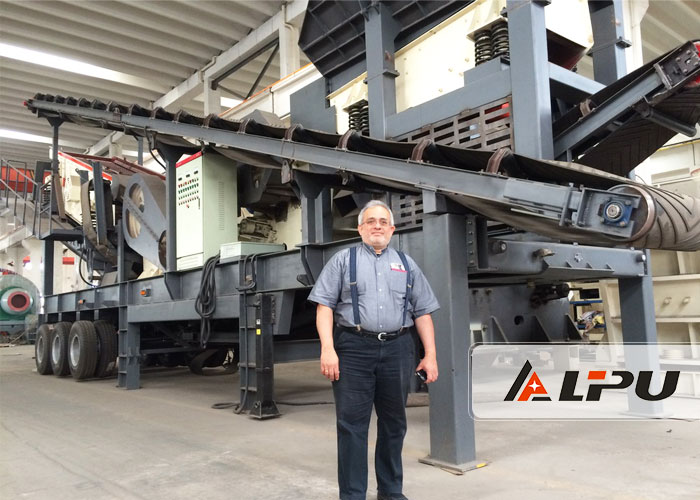

    Customer Visit for Mobile Crushing Plant:
