    Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 2PG610×400
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Environment Friendly Mine Crushing Equipment Double Roll Crusher for Aggregate Crusher Plant

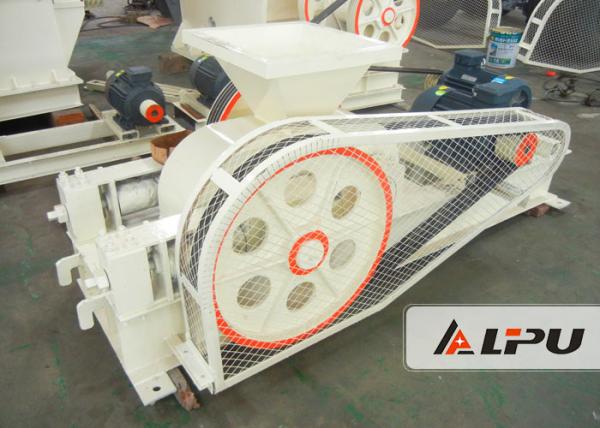

    Environment Friendly Mine Crusher Double Roll Crusher for Aggregate Crusher Plant
    Description of Roller Crusher
    Double Roller Crusher(or Roller Crusher) is used for middle crushing and fine crushing of all kinds of ores and rocks under mid-hardness in mine, chemical industry, cement, building materials and other industrial sections. Roller crusher has simple structure and can be operated conveniently. Ideal product size depends on adjusting space between two rollers.
    Feature of Roller Crusher
    1 Compact structure, light weight and small dimension.
    2 Easy operation.
    3 Good seal to reduce the leak of the dust, environment friendly.
    4 High efficiency but low power consumption.
    5 High crushing ratio, finished size adjustable.
    Working Principle of Roller Crusher:
    1. Driven by electromotor via reducer, two tooth roller rotate inward synchronously in opposite direction;
    2. Material dropping from the inlet to crushing chamber;
    3. Classified by the tooth roller with tooth;
    4. The massive materials would be crushed, cut, and then discharged in the discharging opening.
    Technical Parameters:

    No.

    Model

    Input size (mm)

    Output size (mm)

    Capacity (t/h)

    Power (kW)

    Weight (t)

    Protection Method

    1

    2PG400×250

    <12

    0-5

    5-13

    2×5.5

    1.1

    Spring

    2

    2PG450×500

    <12

    0-5

    6-19

    2×11

    3.8

    3

    2PG600×750

    <30

    0-10

    10-38

    2×22

    8.4

    4

    2PG610×400

    <30

    0-10

    5-21

    2×15

    3.5

    5

    2PG800×600

    <40

    0-20

    8-42

    2×22

    12.5

    6

    2PG900×900

    <40

    0-20

    12-72

    2×37

    15.3

    Spring/

    Hydraulic System

    7

    2PG900×1200

    <40

    0-20

    17-97

    2×55

    18.5

    8

    2PG1000×800

    <50

    0-30

    12-75

    2×45

    21.6

    9

    2PG1200×800

    <60

    0-30

    12-91

    2×55

    27.4

    10

    2PG1200×1200

    <60

    0-30

    18-136

    2×75

    32.8

    11

    2PG1600×1200

    <70

    0-30

    20-202

    2×110

    43.6

    12

    2PG1600×1600

    <70

    0-30

    27-270

    2×132

    51.2

    13

    2PG1800×1600

    <80

    0-40

    27-302

    2×160

    56.7

    14

    2PG2000×1800

    <100

    0-40

    31-393

    2×200

    71.3

    Roller Crusher Delivery Site :
