Effective Volume 18.7m³ Ball Mill Grinder Machine Ball Milling Equipment

Introduction of Ball Mill

Ball Mill Grinder Machine, an energy-saving grinding device, is widely used in mineral processing, building materials and chemical industries.

Ball Mill Grinder Machine grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter is, the slower the rotation is. If the peripheral speed of the Ball Mill Grinder Machine is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill.

Structure of Ball Mill

Ball Mill Grinder Machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The Ball Mill Grinder Machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

Technical Data:

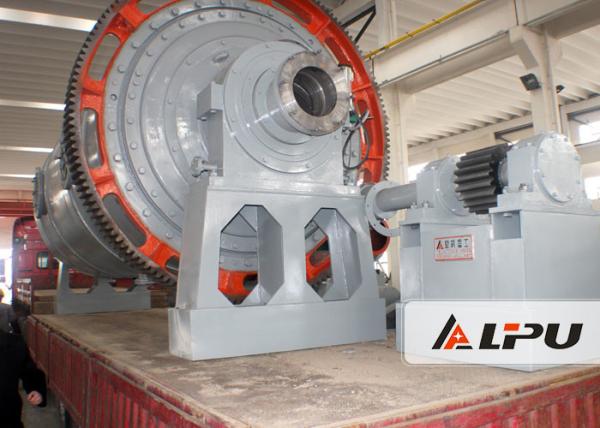

Product Picture Show:

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
