Textile Chemical Sludge Dewatering Equipment , Staniless Steel Rotating Rotary Drying Machine

Ideal For: clay, DDGS, sewage sludge, textile chemical sludge, painting sludge, animal feed, food waste, coal, oil sludge, farm waste, coconut copra, fruit pomace, carob pulp, industrial waste, etc.

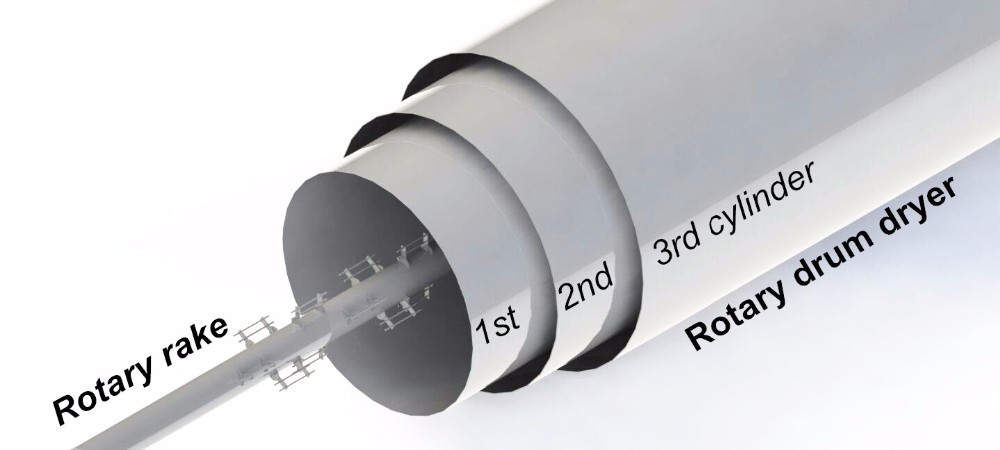

By analyzing the characteristics of sludge (includes moisture, viscosity, water molecular structure, particle size, PH, hygroscopicity, etc.), we adopt “Rotary Rake, triple-pass and large volume hot air supply” drying technology in this sluge drying equipment.
Based on the traditional structure of the rotary drum dryer, it adds scatter device along the axis of the cylinder. When sludge material enter the cylinder: Firstly, the material is hit, broken by the device in the process of falling, and then, it is repeatedly grabbed, lift, fallen and beaten throughly. The surface area of the shattered materials increased rapidly, and contact with hot air sufficiently to transfer heat and mass. After multiple level drying within three cylincer drum, it eventually meets the drying requirements.

The drying effect is superior when compared with its previous generation single-stage drum dryer.
A. Large capacity, continuous and stable operation;
B. High flexibility in operation, fast, efficient drying results;
C. Rotary speed and scattering device speed can be adjusted, and can meet the requirements of different materials;
D. It can meet the drying requirement by choosing different structure forms the copy board;
E. Because of the crushing effect on material scattering device, the heat efficiency is improved;
F. Triple drum, triple energy efficiency.

Textile Chemical sludge dewatering Sludge Dryer Rotary Parameters:
