Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed from wholesalers

    Buy cheap Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed from wholesalers
    • Buy cheap Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed from wholesalers

    Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 1200×2400
    Certification : ISO9001-2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Trunion Bearing Ball Milling Equipment 35rpm Rotary Speed

    Grate Type Limestone Grinding Ball Mill Iron Ore Ball Mill in Mining Industry

    Introduction of Ball Mill

    Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.

    Selection of a Ball Mill

    Selection of Ball Mill is done as per product quality, fineness, nature of raw material, site conditions and specific requirements like:-

    • Open circuit or closed circuit
    • Slide shoe bearing or Trunion Bearing
    • Wet or Dry Grinding
    • Central Drive or Girth Gear Pinion Drive

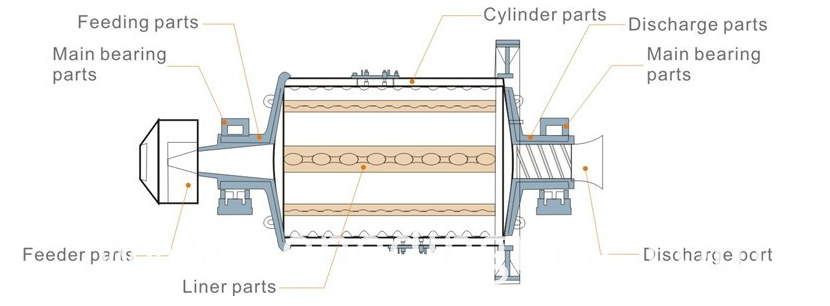

    ball mill structure

    Successful Installation in

    • Grey & White Cement
    • Limestone
    • Coal
    • Chrome Ore
    • Iron Ore
    • Silica Manganese
    • Phosphate
    • Slag
    • Pet coke
    • Alumina

    Technical Data:

    ModelRotate Speed (r/min)Grinding Media Weight (t)Max. Feeding Size(mm)Discharge Size (mm)Output Capacity(t/h)Motor Power (kw)
    Ф900×180036~381.5≤200.075-0.890.65-218.5
    Ф900×3000362.7≤200.075-0.891.1-3.522
    Ф1200×2400363≤250.075-0.61.5-4.830
    Ф1200×3000363.5≤250.074-0.41.6-537
    Ф1200×450032.45≤250.074-0.41.6-5.855
    Ф1500×300029.77.5≤250.074-0.42-575
    Ф1500×45002711≤250.074-0.43-6110
    Ф1500×57002812≤250.074-0.43.5-6130
    Ф1830×300025.411≤250.074-0.44-10130
    Ф1830×450025.415≤250.074-0.44.5-12155
    Ф1830×640024.121≤250.074-0.46.5-15210
    Ф1830×700024.123≤250.074-0.47.5-17245
    Ф2100×300023.715≤250.074-0.46.5-36155
    Ф2100×450023.724≤250.074-0.48-43245
    Ф2100×700023.726≤250.074-0.48-48280
    Ф2200×450021.527≤250.074-0.49-45280
    Ф2200×650021.735≤250.074-0.414-26380
    Ф2200×700021.735≤250.074-0.415-28380
    Ф2200×750021.735≤250.074-0.415-30380
    Ф2400×30002123≤250.074-0.47-50245
    Ф2400×45002130≤250.074-0.48.5-60320
    Ф2700×400020.740≤250.074-0.412-80400
    Ф2700×450020.748≤250.074-0.412-90430
    Ф3200×45001865≤250.074-0.4According to the process condition

    800



    Service:

    Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
