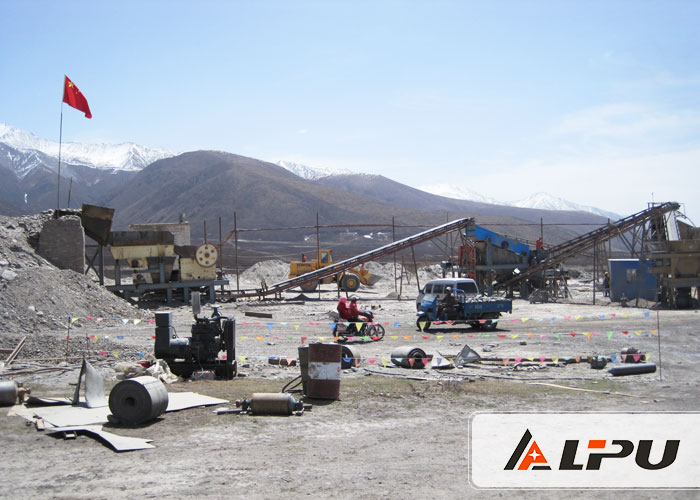

High Efficiency Hard Stone Crushing Plant With Capacity 100 - 150 TPH
Introduction:
The 100t/h – 150t/h stone crushing plant is designed for medium scale stone quarrying plant, aggregate plant, mineral beneficiation plant and so on.This stone crushing plant can crush the most common materials like granite, basalt, barite, limestone, quartzite, marble, sandstone, cobble stone, iron ore, copper, gold, bauxite and so on.
Process Description:
100t/h – 150t/h stone crushing plant set jaw crusher model PEV600×900 as primary crushing, easy changeable wearing parts of the crushing equipment are of high quality with abrasive characteristics, which decreasing the production cost,but increasing output greatly.
The secondary crusher we use is impact crusher which is widely used and welcomed by users in lots of countries due to its high working efficiency.
By replacing different screen mesh sizes, various final products are achieved. Besides, VC crusher is expected to work together for making sand as final products.
Technical Data:
No. | Equipment | Model | Motor (kw) | Number |
Hopper | LC3000×4000 | 1 | ||
I | Vibrating Feeder | GZD950×3800 | 6 | 1 |
II | Jaw Crusher | PEV600×900 | 75 | 1 |
III | Impact Crusher | PF1315-Ⅲ | 160 | 1 |
IV | Vibrating Screen | 3YK1860 | 22 | 1 |
Belt | ||||
No. | Name | Length (m) | Motor (KW) | Number |
B1 | B500 | 15 | 5.5 | 1 |
B2 | B800 | 17 | 7.5 | 1 |
B3 | B800 | 23 | 11 | 1 |
B4 | B500 | 25 | 7.5 | 1 |
B5 | B500 | 20 | 5.5 | 3 |
![]() |
