Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers

    Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers
    • Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers
    • Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers
    • Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers
    • Buy cheap Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h from wholesalers

    Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : YK Series
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h

    Smooth Operation YK Circular Vibrating Screening Machine 27-1600 t/h

    Brief Introduction:

    YK Circular Vibrating Screen Machine is a kind of multi-layer screening machine. It is used to separate crushed stone into different sizes, and it is also used as a grading machine in coal dressing, ore dressing, construction, electric and chemical industries.

    Performance Features:

    1. Low power consumption and low noise.

    2. Simple structure and convenient maintenance.
    3. Smooth operation.
    4. High screening efficiency, large handling capacity and long service life.

    Technical Parameters:

    Model

    Layer

    Dual Amplitude

    (mm)

    Vibrating Frequency

    (r/min)

    Capacity

    (t/h)

    Power

    (kW)

    Overall Dimension

    L×W×H (mm)

    Weight

    (t)

    YK0824

    1

    6-10

    960

    27-150

    4

    3070×1350×1110

    1.7

    2YK0824

    2

    6-10

    960

    27-150

    4

    3070×1350×1110

    1.8

    YK1236

    1

    6-10

    960

    35-206

    5.5

    4270×1750×1240

    2.8

    2YK1236

    2

    6-10

    960

    35-206

    5.5

    4400×1750×1240

    3

    3YK1236

    3

    6-10

    970

    35-206

    7.5

    4520×1750×1560

    3.5

    YK1548

    1

    6-10

    970

    44-275

    15

    5520×2130×1370

    4

    2YK1548

    2

    6-10

    970

    44-275

    15

    5650×2130×1370

    4.5

    3YK1548

    3

    6-10

    970

    44-275

    15

    5760×2130×1690

    5.5

    4YK1548

    4

    6-10

    970

    44-275

    18.5

    5880×2130×2010

    6

    YK1848

    1

    6-10

    970

    56-400

    18.5

    5650×2430×1370

    4.5

    2YK1848

    2

    6-10

    970

    56-400

    18.5

    5650×2430×1370

    4.8

    3YK1848

    3

    6-10

    970

    56-400

    22

    5760×2430×1690

    5.7

    4YK1848

    4

    6-10

    970

    56-400

    22

    5880×2430×2010

    6.4

    YK1860

    1

    6-10

    970

    56-450

    22

    6740×2440×1410

    5.4

    2YK1860

    2

    6-10

    970

    56-450

    22

    6860×2440×1410

    5.9

    3YK1860

    3

    6-10

    970

    56-450

    22

    6990×2440×1760

    7

    4YK1860

    4

    6-10

    980

    56-450

    30

    7120×2440×2110

    8

    YK2160

    1

    6-10

    980

    80-720

    30

    6740×2740×1410

    5.6

    2YK2160

    2

    6-10

    980

    80-720

    30

    6860×2740×1410

    6.1

    3YK2160

    3

    6-10

    980

    80-720

    30

    6990×2740×1760

    7.2

    4YK2160

    4

    6-10

    980

    80-720

    37

    7120×2740×2110

    8.5

    YK2460

    1

    6-10

    980

    100-800

    30

    6740×3040×1410

    5.9

    2YK2460

    2

    6-10

    980

    100-800

    30

    6860×3040×1410

    6.5

    3YK2460

    3

    6-10

    980

    100-800

    37

    6990×3040×1760

    8

    4YK2460

    4

    6-10

    980

    100-800

    37

    7120×3040×2110

    9.1

    YK3070

    1

    6-10

    980

    180-1600

    45

    7740×3640×1540

    7.5

    2YK3070

    2

    6-10

    980

    180-1600

    45

    7860×3640×1540

    9.3

    3YK3070

    3

    6-10

    980

    180-1600

    45

    7990×3640×1890

    12

    4YK3070

    4

    6-10

    980

    180-1600

    55

    8120×3640×2240

    14.4

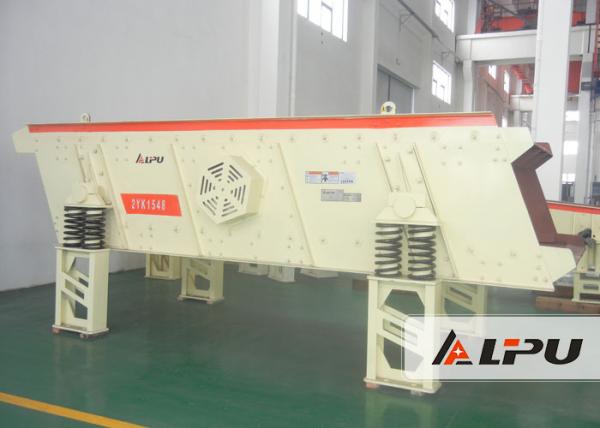

    Working Site of Circular Vibrating Screen​:
