High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap High Efficiency Grizzly Vibrating Feeder In Gravel Production Line from wholesalers

    Buy cheap High Efficiency Grizzly Vibrating Feeder In Gravel Production Line from wholesalers
    • Buy cheap High Efficiency Grizzly Vibrating Feeder In Gravel Production Line from wholesalers

    High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : GZD9538
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

    High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

    Brief Introduction:

    Grizzly Feeder is widely used in the industries of metallurgy, coal, chemicals, building materials, light industry, glass, food for dosing, batching and packaging. The vibrating feeder with the closed structure can prevent dust pollution.

    Performance Features:

    1. simple structure and reliable operation.

    2. Convenient adjustment and installation.

    3. Light weight and small size.

    4. Convenient maintenance and repair.

    Working Principle:

    Grizzly Feeder mainly consists of vibrating frame, spring, vibrator and motor. The vibrator is made up of two eccentric shafts which are located in special place by two gears. When assembling, the two gears must be matched according to marks. The motor makes two eccentric shafts rotate, which produces great vibration force. Under this impetus, the materials shall slide and be thrown forward, therefore, the machine acts as a feeder. When the material goes through grid bar above the groove, small material will drop through space between grid bars, so the machine also plays a screening effect.

    Technical Parameters:

    Model

    Vibration frequency(r/min)

    Double-amplitude(mm)

    Capacity (t/h)

    Power

    (kW)

    Overall dimension

    (mm)

    Weight (t)

    GZD9538

    970

    4-6

    120-210

    2×3

    3910×1520×1460

    3

    GZD1149

    970

    4-6

    160-320

    2×5.5

    5010×1670×1710

    4.3

    GZD1249

    970

    4-6

    180-380

    2×5.5

    5010×1770×1710

    4

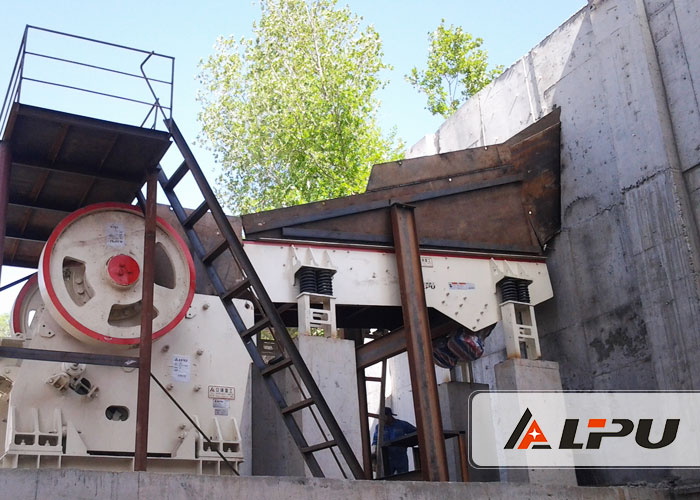

    Working Site of High Efficiency Grizzly Feeder:
