    1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : ZSG1237
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment
    • Product Details
    • Company Profile

    1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting

    1 - 4 Sieve Layer Linear Vibrating Screen for Sand Ore Grading And Selecting
    Description:

    Linear Vibrating Screen uses excellent vibrating motor as power source. The materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration, etc.

    Features:

    1. Easy to operate and maintain.

    2. Low consumption, high yield and low cost.

    3. Fully enclosed structure, automatic layout, more suitable for pipeline operations.

    4. Good sealing without dust flying.

    5. Can be used for single or multi layer.

    6. Material auto discharge system, continuous operation.

    7. Every part of the screen box uses copper plate and section welded together.

    Application:

    1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

    2) Organic fertilizer industry.

    3) Plastics industry.

    4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

    5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

    6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

    7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

    8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
    Technical Parameters:

    Model

    Sieve specification(L×W)

    Sieve layer

    Mesh size

    Feeding size

    Processing capacity

    Motor power

    Total weight

    Vibrating frequency

    Double amplitude

    Sieve obliquity

    Dimensions (L×W×H)


    (mm)


    (mm)

    (mm)

    (t/h)

    (kw)

    (kg)

    (Hz)

    (mm)

    (℃)

    (mm)

    ZSG1237

    3700×1200

    1

    4-50

    ≤200

    10-100

    5.5×2

    2250

    16

    6-8

    15

    3800×2050×1920

    2ZSG1237

    3700×1200

    2

    4-50

    ≤200

    10-100

    5.5×2

    3345

    16

    6-8

    15

    3800×2050×2200

    ZSG1443

    4300×1400

    1

    4-50

    ≤200

    10-150

    5.5×2

    4100

    16

    6-8

    15

    4500×3040×2500

    2ZSG1443

    4300×1400

    2

    4-50

    ≤200

    10-150

    5.5×2

    4900

    16

    6-8

    15

    4500×3040×2700

    3ZSG1443

    4300×1400

    3

    4-50

    ≤200

    10-150

    5.5×2

    5870

    16

    6-8

    15

    4500×3040×2820

    2ZSG1548

    4800×1500

    2

    5-50

    ≤200

    15-200

    7.5×2

    5836

    16

    8-10

    15

    4800×3140×2814

    3ZSG1548

    4800×1500

    3

    5-50

    ≤200

    15-200

    7.5×2

    6900

    16

    8-10

    15

    4799×3140×3014

    2ZSG1848

    4800×1800

    2

    5-50

    ≤300

    50-500

    7.5×2

    6489

    16

    8-10

    15

    4799×3440×2814

    3ZSG1848

    4800×1800

    3

    5-50

    ≤300

    50-500

    7.5×2

    7750

    16

    8-10

    15

    4799×3440×3014

    4ZSG1848

    4800×1800

    4

    5-50

    ≤200

    50-500

    11×2

    8300

    16

    8-10

    15

    4799×3440×3503

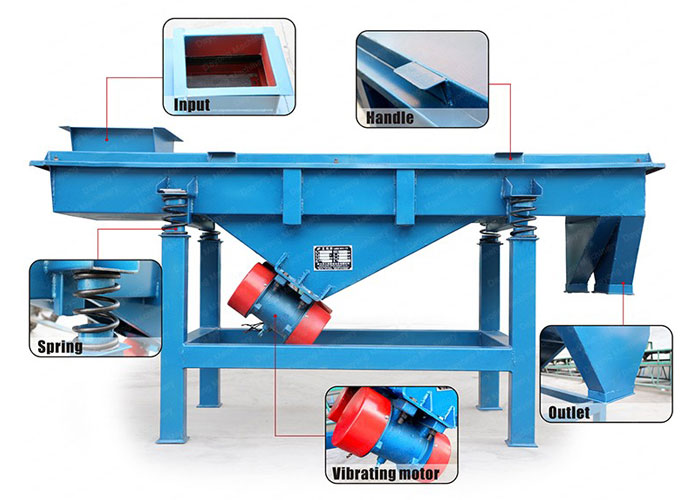

    Linear Vibrating Screen Machine Structure:
