Brand Name : | Lipu |
Model Number : | φ2.5×2.5 |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |
Mine Mixing Machine Agitation Tank for Ore Beneficiation Industry
2.2 - 45 kw
Introduction of Agitation Tank:
Agitation Tank is the indispensable equipment to fully mix the
reagent and the ore pulp, increase the reaction time of the reagent
and strengthen the quality of the reagent reaction. This machine is
suitable to be used in ore beneficiation industry and also for
stirring the ingredients in all various industries.
Direction for the use of mixer: Before use, fasten the bolts of the
pump part, turn the belt wheel of the pump bearing to see whether
it is flexible, and then start the machine.
Quick-wear parts: impeller, stator.
1. Compact structure, good seal, and feed port settings the block
gray board, to prevent the mist playing.
2. The nozzle is multi-rank; the water volume is even and can be
adjusted.
3. Stir mixing blades fanned when stirred media contact area.
4. Leftover ash and low setting box at the bottom of the watershed
to ensure that the equipment have no dead ends.
5. Mine mixing tube equipment advanced performance, the quality of
the finished product is stable, stir rapid discharge.
Technical Parameters:
Model | Tank specifications (mm) | Effective volume (m3) | Impeller speed (r/min) | Power (kW) | Weight (t) |
φ2.5×2.5 | 2500×2500 | 11 | 49 | 2.2 | 2.8 |
φ2.5×3.0 | 2500×3000 | 13 | 49 | 2.2 | 3.1 |
φ3.0×3.5 | 3000×3550 | 21 | 41 | 4 | 5.4 |
φ3.5×3.5 | 3550×3550 | 29 | 41 | 5.5 | 5.5 |
φ3.5×4.0 | 3550×4000 | 35 | 36 | 4 | 6.5 |
φ4.0×4.5 | 4000×4500 | 50 | 33.5 | 7.5 | 7.5 |
φ4.5×5.0 | 4500×5000 | 71.67 | 33.5 | 7.5 | 10.8 |
φ5.0×5.6 | 5000×5600 | 98 | 31 | 11 | 13.4 |
φ6.0×6.5 | 6000×6500 | 170 | 28 | 15 | 20.7 |
φ7.0×7.5 | 7000×7500 | 269 | 20.4 | 18.5 | 33 |
φ8.0×8.5 | 8000×8500 | 420 | 18.25 | 22 | 41 |
φ8.5×9.0 | 8500×9000 | 480 | 17 | 22 | 48.5 |
φ9.0×9.5 | 9000×9500 | 572 | 17 | 37 | 57 |
φ9.5×10.0 | 9500×10000 | 673 | 14 | 37 | 65 |
φ10×10.5 | 1000×10500 | 785 | 14 | 45 | 78 |

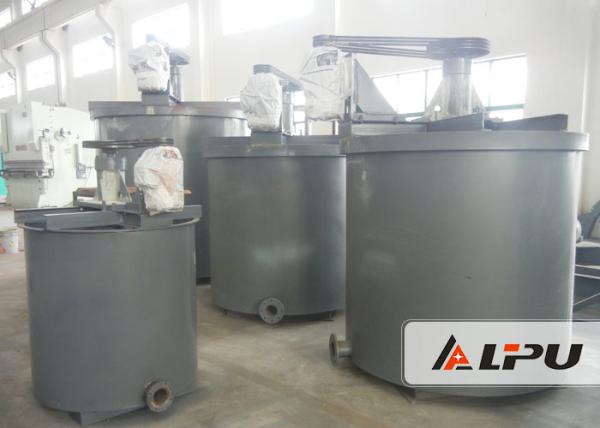

Product Pictures Show:
![]() |
