Brand Name : | Lipu |
Model Number : | YG0830E4060 |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |
Wheel Type Mobile Crushing and Screening Station , Potable Jaw
Crusher in Quarry
Brief Introduction:
Wheel type mobile crushing plant is used for crushing stones at
quarry sites as well as on-site recycling of construction waste
such as concrete debris, stones and other materials. Lipu
manufactures a complete range of mobile/portable crushing plant for
use in primary, secondary and tertiary applications. Available in
wheeled form, they incorporate the range of jaw crushers, cone
crushers and impact crushers. They are capable of crushing concrete
debris, fine crushing natural stone and producing large volumes of
high quality product in a single pass.
Working Principle:
Mobile crushing plant is composed of primary crushing and screening
station and secondary one, belt conveyor, etc. Every crushing
station is an independent working unit, they can respectively
assume their different responsibility, and the belt conveyor is
responsible for material transmitting and piling up each crushing
station.
The parts included in crushing station:
1. Mobile/portable jaw crusher plant/station
2. Mobile/portable impact crusher plant/station
3. Mobile/portable cone crusher plant/station
4. Mobile/portable screen plant plant/station
Model | YG0830E4060 | YG0830E5075 | YG9538E6090 | YG1149E75110 | YG1249E86110 |
Feeder Model | GZD0830 | GZD0830 | GZD9538 | GZD1149 | GZD1249 |
Crusher Model | PEV400×600 | PEV500×750 | PEV600×900 | PEV750×1100 | PEV860×1100 |
Iron Separator Model (optional) | RCYD(C)-5 | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
Tyre Parameters | Double- axle | Double- axle | Double- axle | Triplex-axle | Triplex-axle |
Belt Conveyor Model(mm) | B500×8.5m | B650×8.5m | B800×8.5m | B1000×10m | B1200×10m |
Belt Conveyor Discharging height(mm) | 3000 | 3000 | 3000 | 3200 | 3200 |
Side Belt Conveyor Model(optional) | B500×4m | B500×4m | B500×4m | B650×5m | B650×5m |
Side Belt Conveyor Discharging height (mm) | 2800 | 2800 | 2800 | 3100 | 3100 |
Generator Power(kW)(optional) | 80 | 120 | 160 | 200 | 250 |
Transport length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Transport Width(mm) | 2550 | 2550 | 2550 | 2550 | 2550 |
Transport Height (mm) | 3650 | 3800 | 4000 | 4300 | 4500 |
Operation Length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Operation Width(mm) | 2550 | 2550 | 2900 | 2950 | 3300 |
Operation Height(mm) | 4060 | 4200 | 4400 | 4810 | 5300 |
Weight(t) | 17 | 28 | 39 | 57 | 65 |

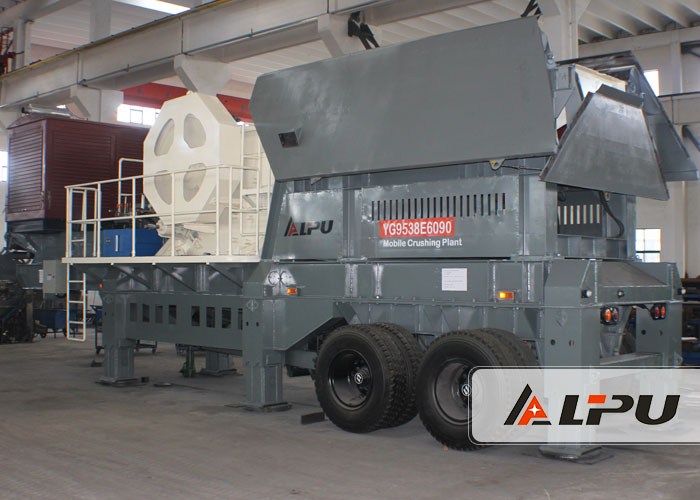

Product Picture Show:
![]() |
