Simple Operation Stone Mobile Crusher, Mobile Jaw Crushing Plant in
Mining Metallrugy
Application
The mobile crushing plant is not limited by the crushing place, and
reduces high material transportation cost. It can crush materials
on site or working nearly. It is widely used in the industry of
mining, metallurgy, building materials, traffic, water conservancy
and so on.
Features
1. Move easily. It can go to the crushing place directly. It can
move not only on the smooth road, but also on the bumpy road.
2. Compact structure and simple operation. Integrative equipment
group with trailer save the working area. With generator, motor and
control box on the trailer, it can work outdoor easily. Equipped
with supporting facilities, it can be installed quickly and
conveniently.
3. Save the cost. By crushing the materials on site, the
transportation cost is reduced.
4. Wide applicability. The crushing plant can work as independent
unit or work with other units to form a primary-secondary crushing
system or primary-secondary-fine crushing system. It can also work
as a production line with the screening equipment according to the
requirement of customers (firstly screening then crushing, or
firstly crushing then screening.)
5. Stable performance and convenient maintenance. Equipped with
crushers, vibrating feeders, and vibrating screens designed by
Great Wall Heavy Industry Machinery, the mobile crushing plant
shows high quality and reliable performance. Materials are
delivered by belt conveyors, which is simple to operate and easy to
maintain. The machine is featured by low investment and high
production efficiency.
6. Flexible configuration. It can be customized according to
customers’ requirement on working site, materials and particle
shape. Examples of customized machines include single units,
combined units, units with self-discharged belt conveyors.
Technical Data:
Model | YG0830E4060 | YG0830E5075 | YG9538E6090 | YG1149E75110 | YG1249E86110 |
Feeder Model | GZD0830 | GZD0830 | GZD9538 | GZD1149 | GZD1249 |
Crusher Model | PEV400×600 | PEV500×750 | PEV600×900 | PEV750×1100 | PEV860×1100 |
Iron Separator Model (optional) | RCYD(C)-5 | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
Tyre Parameters | Double- axle | Double- axle | Double- axle | Triplex-axle | Triplex-axle |
Belt Conveyor Model(mm) | B500×8.5m | B650×8.5m | B800×8.5m | B1000×10m | B1200×10m |
Belt Conveyor Discharging height(mm) | 3000 | 3000 | 3000 | 3200 | 3200 |
Side Belt Conveyor Model(optional) | B500×4m | B500×4m | B500×4m | B650×5m | B650×5m |
Side Belt Conveyor Discharging height (mm) | 2800 | 2800 | 2800 | 3100 | 3100 |
Generator Power(kW)(optional) | 80 | 120 | 160 | 200 | 250 |
Transport length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Transport Width(mm) | 2550 | 2550 | 2550 | 2550 | 2550 |
Transport Height (mm) | 3650 | 3800 | 4000 | 4300 | 4500 |
Operation Length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Operation Width(mm) | 2550 | 2550 | 2900 | 2950 | 3300 |
Operation Height(mm) | 4060 | 4200 | 4400 | 4810 | 5300 |
Weight(t) | 17 | 28 | 39 | 57 | 65 |

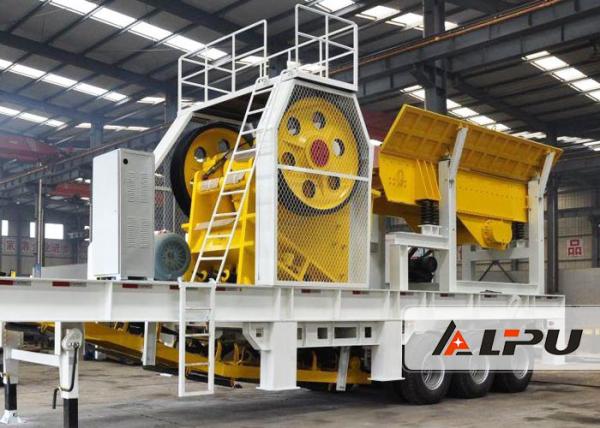

Product Picture Show:
![]() |
