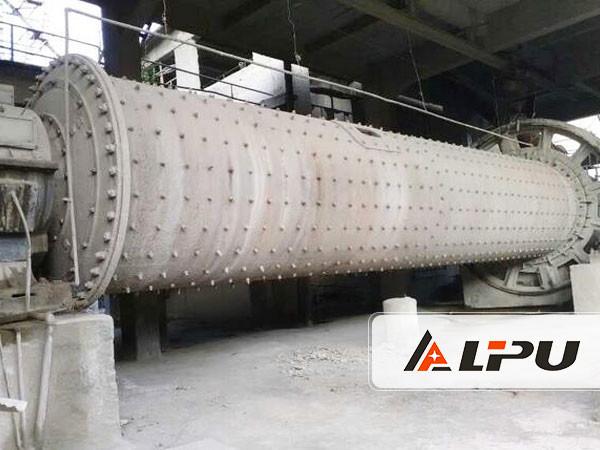

MQG Series Dry Cement Ball Grinding Mill for Mine Cement Ceramic Industry

Introduction of Cement Ball Mill

Ball mills produced by our company are essential equipment in the mixing, fine grinding, preparing of nanometer materials and small batch production of high-tech materials. It has been widely used in mine, cement, metallurgy, electronics, building materials, ceramic industry, chemical industry, light industry and other fields.

Features of Cement Ball Mill

1. Large application range, simple structure and convenient maintenance;

2. Large capacity and continuous work are very obvious;

3. Barrel lining and grinding media can apply various abrasive materials;

4. Installation and adjustment are very convenient and easy to be operated.

Working Principle of Cement Ball Mill

The ball mill is a horizontal cylindrical rotating device with outer gears transmission, two warehouses and a grate ball mill. The materials get into the first warehouse through the feeding quill shaft from the feeding device evenly, with the step scale board or the corrugated scale board in the warehouse loaded with different sizes of steel balls. The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height, which then fall down, thus making a thumping and abrading to the materials. The materials after coarse grinding in the first warehouse get into the second warehouse with flat scale board embedded with steel sections through the single monolayer partition panel for further crushing. The powder of the materials will be discharged from the unloading board to finish the grinding work.

Technical Data of Cement Ball Mill:

Case:

Customer from Turkey Visited Our Factory For Ball Mill

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
