Ceramic Lining or Chinaware Ball Mill for Ore Dressing Industry Capacity 7.5-17 t/h
Introduction of Ceramic Lining Ball Mill
1. The ceramic lining or chinaware ball mill is a horizontal type cylinder rotary grinding device.
2. It adopts two types of structure: unitary type and independent type.
3. According to the proportion and hardness of the materials and the output, the customers can choose suitable machine and the types of lining plate and grinding media in line with their actual needs.
Advantages of Ceramic Lining Ball Mill
1. Even final product.
2. Compact structure.
3. Simple and reliable operation.
4. Energy saving and low investment.
5. Suitable for different production requirements for adopting different liners.
6. Automatically controlled the fineness of the grinding process by grinding time.
Working Principle of Ceramic Lining Ball Mill
The electrical motor drives the cylinder to rotate through the reducer, and the broken ore and the steel balls inside the cylinder are brought by the lining board to a certain height under the frictional force and eccentric force produced by the rotation of the cylinder. Due to the action of gravity, the ores will drop and are gradually crushed under the impacting and grinding effect and the crushed ores will be discharged out of the cylinder through the discharging part. The discharged ores are classified by the spiral classifier, and the coarse sand will go back to ball mill from the joint feeding machine to be ground again. The feeding machine continuously and evenly feeds materials, the ores will continuously and evenly go into the mill through the joint feeding machine, and the ground materials will be continuously discharged from the mill.
Technical Data:

Case:

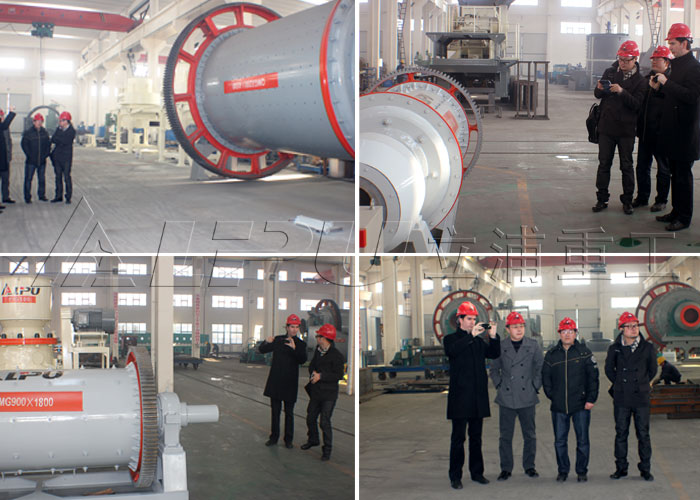

Turkey Customer Visited Our Factory for Ball Mill

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
