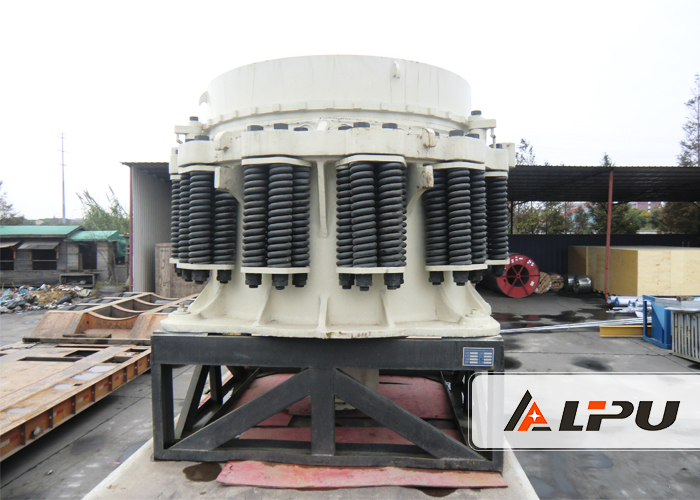

Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy from wholesalers

    Buy cheap Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy from wholesalers
    • Buy cheap Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy from wholesalers
    • Buy cheap Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy from wholesalers

    Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : PYB900
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Capacity 50 - 90 t/h Mine Crushing Equipment Spring Cone Crusher For Mining Metallurgy

    Capacity 50-90t/h Spring Cone Crusher in Mining Metallurgy , Mine Crushing Equipment

    Spring Cone Crusher Introduction

    Spring Cone Crusher is designed to be the crusher of world advanced level. Spring cone crusher is widely used in metallurgical, architectural, water and electricity, traffic, chemical industries. Spring cone crusher are widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, perlite, ironstone, basalt, etc.

    Spring Cone Crusher Features and Benefits

    1. High capacity and superior quality;

    2. Long working life of quick-wear parts, and low investment;

    3. Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time;

    4. Spring Cone Crusher is easy to maintain, reduce the downtime and maintenance costs.

    Spring Cone Crusher Working Principle

    When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

    Technical Parameters:

    Model

    Max.

    Feed Size

    (mm)

    Discharge Size

    (mm)

    Capacity

    (t/h)

    Power

    (kW)

    Overall Dimension

    L×W×H(mm)

    Weight

    (t)

    PYB600

    65

    12-25

    12-25

    30

    2800×1300×1700

    5

    PYD600

    35

    3-15

    5-23

    30

    2800×1300×1700

    5.5

    PYB900

    115

    15-50

    50-90

    55

    3050×1640×2350

    10.2

    PYZ900

    60

    5-20

    20-65

    55

    3050×1640×2350

    10.2

    PYD900

    40

    3-13

    15-50

    55

    3050×1640×2350

    10.3

    PYB1200

    145

    20-50

    110-200

    110

    4152×2300×2980

    24.7

    PYZ1200

    100

    8-25

    50-150

    110

    4152×2300×2980

    25

    PYD1200

    50

    3-15

    18-105

    110

    4152×2300×2980

    25.6

    PYB1750

    215

    25-60

    280-480

    160

    4870×3800×4192

    50.3

    PYZ1750

    185

    10-30

    115-320

    160

    4870×3800×4192

    50.3

    PYD1750

    85

    5-15

    75-230

    160

    4870×3800×4192

    50.4

    PYB2200

    300

    30-60

    590-1000

    260-280

    7705×3430×4852

    80

    PYZ2200

    230

    10-30

    200-580

    260-280

    7705×3430×4852

    80

    PYD2200

    100

    5-15

    120-340

    260-280

    7705×3430×4852

    81.4

    The Delivery Site of Spring Cone Crusher:
