Brand Name : | Lipu |
Model Number : | PFW1214-Ⅲ |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |
Reliable Operation Stone Crushing Machine Impact Crusher PFW1214-Ⅲ
Application:
Impact Crusher is widely used in the fine crushing of granite, basalt, limestone, pebble, cement clinker, quartz, iron ore and bauxite etc. This machine can also be used in artificially sand-making and supplying good-quality aggregate to high-level road, railway, water conservancy, airport, construction, cement, refractory material, metallurgy and other industries.
Characteristics:
This machine has the features of reliable operation, advanced technique, simple structure and easy maintenance. The processing capacity is big and hammer head lifespan is long.
working condition:
Rotors rotate in high speed by driving of motor. The material entering into the first crushing chamber and strikes the plate hammer on rotors to be crushed, after that, it enters into the second fine crushing chamber to be crushed and then discharged from the output opening.
Technical Parameters-PFW Two-cavity Impact Crusher:
Model | Max input size (mm) | Capacity(t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight(t) |
PFW1007-Ⅱ | 300 | 40-90 | 45-55 | 2130×1530×1700 | 11 |
PFW1010-Ⅱ | 350 | 70-120 | 55-75 | 2130×1830×1700 | 14 |
PFW1210-Ⅱ | 400 | 100-160 | 90-110 | 2550×1940×2110 | 17 |
PFW1214-Ⅱ | 450 | 130-200 | 132-160 | 2550×2340×2110 | 22 |
PFW1315-Ⅱ | 500 | 180-320 | 160-200 | 2720×2460×2410 | 29 |
PFW1320-Ⅱ | 550 | 230-450 | 200-250 | 2720×3060×2410 | 38 |
Technical Parameters-PFW Three-cavity Impact Crusher:
Model | Max input size (mm) | Capacity(t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight(t) |
PFW1007-Ⅲ | 200 | 15-60 | 45-55 | 2130×1530×1700 | 9 |
PFW1010-Ⅲ | 200 | 50-90 | 55-75 | 2130×1830×1700 | 12 |
PFW1210-Ⅲ | 250 | 70-140 | 90-110 | 2550×1940×2110 | 15 |
PFW1214-Ⅲ | 250 | 90-190 | 132-160 | 2550×2340×2110 | 19 |
PFW1315-Ⅲ | 300 | 120-280 | 160-200 | 2720×2460×2410 | 25 |
PFW1320-Ⅲ | 300 | 160-350 | 200-250 | 2720×3060×2410 | 31 |

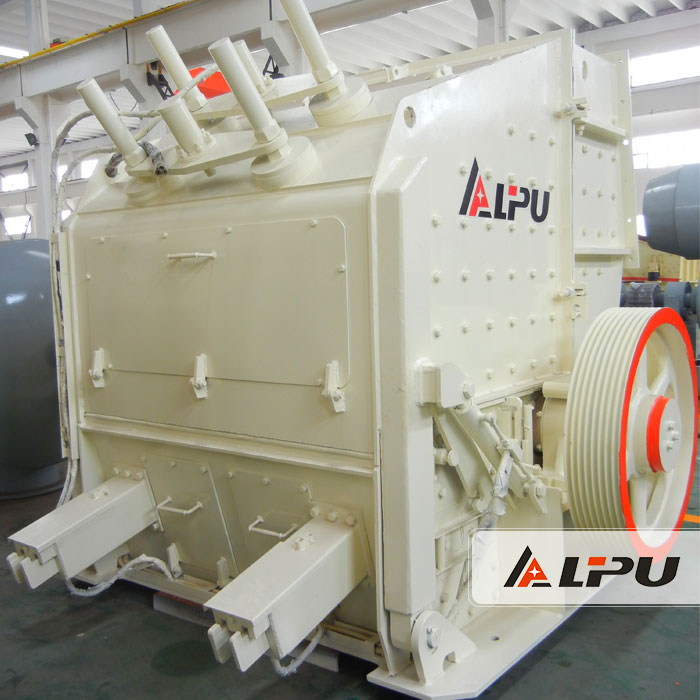

Product Picture Show:
![]() |
