Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw from wholesalers

    Buy cheap Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw from wholesalers
    • Buy cheap Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw from wholesalers
    • Buy cheap Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw from wholesalers

    Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : VCⅡ8622
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Sand Making Industry Mine Crushing Equipment VCII Series Impact Crusher 180 - 220kw

    VCII Series Impact Crusher in Sand Making Industry , Mine Crushing Equipment

    VCII Impact Crusher Application:

    VCII Series Impact Crusher is widely used in crushing nonmetal mine, concrete, fireproof material, abrasive filler, frit, construction aggregate, sand, metallurgy and so on. It is the indispensable machine in sand making industry and it is also the most ideal truing machine for mining and construction industries.

    VCII Series Impact Crusher incorporates three crushing styles; its feeding style incorporates material on material, materials on iron and falling at sides. Customers can adjust the machines according to their own demand. It realizes multiple functions in one machine, which is a big breakthrough in sand making field.

    VCII Impact Crusher Advantage:

    1. Reliable dual pump oil supply lubrication system—stable performance, long life

    2. Hydraulic pressure jack device—convenient, time saving and laborsaving for maintenance

    3. Installation mode selection—handy installation, diversified modes, easy to operate

    4. Crushing principle selection—impact grinding with superior particle shape

    5. Chamber type optimization design——lessening consumption of wearing parts.

    Technical Parameter :

    Model

    VCⅡ7515

    VCⅡ8622

    VCⅡ9532

    VCⅡ1145

    Capacity(t/h)

    Center

    feeding

    70-150

    120-220

    170-320

    260-450

    Center

    and side

    feeding

    90-200

    150-290

    220-420

    340-590

    Max. Feed

    Size(mm)

    40

    50

    50

    50

    Double

    Motor

    Power(kW)

    110-150

    180-220

    260-320

    400-440

    Overall

    Dimension/L×W×H(mm)

    4100×2000×3200

    4500×2100×3400

    4800×2250×3800

    5200×2400×4200

    Transportation

    Dimension/

    L×W×H(mm)

    4100×2000×2100

    4500×2100×2200

    4800×2250×2600

    5200×2400×2850

    Weight(t)

    stone

    strike

    stone” crushing

    cavity

    7.8

    9.2

    12

    15

    stone strike

    iron” crushing

    cavity

    8.9

    10.5

    13.8

    17.5

    Thin Oil Lubrication Station

    Double Oil

    Pump Power(kW)

    2×0.37

    Safety

    Protection

    Double Oil Pump feed each other; Automatic shutdown when

    no oil return; Water cooling system; Automatic heating in low temperature.

    Oil Tank

    Heating

    Power(kW)

    2

    Overall Dimension/L

    ×W×H(mm)

    820×520×1270

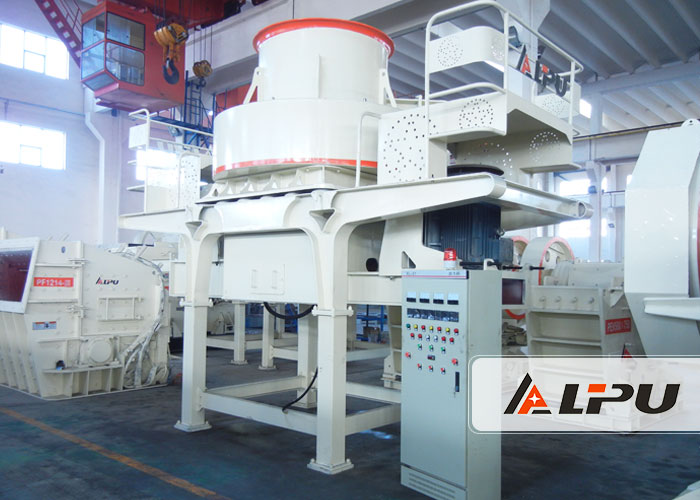

    Product Picture Show :
