Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H from wholesalers

    Buy cheap Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H from wholesalers
    • Buy cheap Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H from wholesalers
    • Buy cheap Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H from wholesalers

    Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : According to customer
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15 sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Complete Quarry Stone Crushing Machine Production Line Capacity 200 T / H

    Complete Quarry Stone Crushing Production Line , Stone Crushing Machine

    Introduction of Stone Crushing Production Line

    The Stone Crushing Production Line consists of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor, electric control, etc. We design different production lines ranging 50 t/h to 500 t/h by combining different models of equipment which can match cone crusher, deduster, etc.

    We Here Recommend Three Proposals:

    Proposal 1: vibrating feeder +primary jaw crusher +impact crusher +vibrating screen +belt conveying system +control system

    Proposal 2: vibrating feeder +primary jaw crusher +fineness jaw crusher +impact crusher(optional)+vibrating screen +belt conveying system +control system

    Proposal 3: vibrating feeder +primary jaw crusher +Compound cone crusher +impact crusher(optional)+vibrating screen +belt conveying system +control system

    In the above proposals, the main difference is the secondary crusher: using impact crusher (hammer crushing principle), or using fineness jaw crusher(plate pressing principle), or Compound cone crusher(plate pressing principle).


    If the local market has not request of the stone shape, users prefer to use fineness jaw crusher, or Compound cone crusher as the secondary crusher. Because for high hardness stones, the quick wear parts cost of fineness crusher/cone crusher is lower than that of impact crusher.


    For jaw crusher and compound cone crusher, the working principle is plate pressing, so the percentage of stones with flaky shape, internal cracks is high.


    For impact crusher, it has the functions of crushing and shaping, can make very good cubic shape; the stone materials are mainly used for highway, water conservancy, airport, civil construction, etc. The market prices of stones made by impact crusher is higher than that by fineness jaw crusher or compound cone crusher; the quick wear parts cost of impact crusher is also high for high hardness stones.


    If the market has request for the stone shape, and the users want to reduce the quick wear parts cost. Here we recommend firstly use primary jaw crusher + fineness jaw crusher/compound cone crusher as the primary and secondary crushers, take the impact crusher as the tertiary crusher to shaping the stones. This proposal has been adopted by many users, and proved to be workable.

    Technical Data:

    Processing

    (t/h)

    Major equipment type, size, number
    Feeding equipment

    Crushing

    equipment

    Crushing

    equipment

    Classification and screening

    equipment

    Belt Conveyor(m)Installed power(kw)
    30GZD8030PE400×600PF10082YK123560-90120
    50GZD8530PE400×600PF10083YK1235100-130140
    80GZD9636PE500×750PF10103YK1545130-160200
    100GZD9638PE600×900PF12103YK1545140-180280
    150GZD1142PE750×1060PF12143YK1854200-240300
    200GZD1142PE750×1060PF13153YK1860200350
    250GZD1149PE750×1060PF1214/23YK2160200400
    300GZD1249PE900×1200PF1315/23YK2160250450
    350GZD1349PE1000×1200PF1315/23YK2460250500
    450GZD1349PE1000×1200PF1315/2 PF12143YK2160/2350600

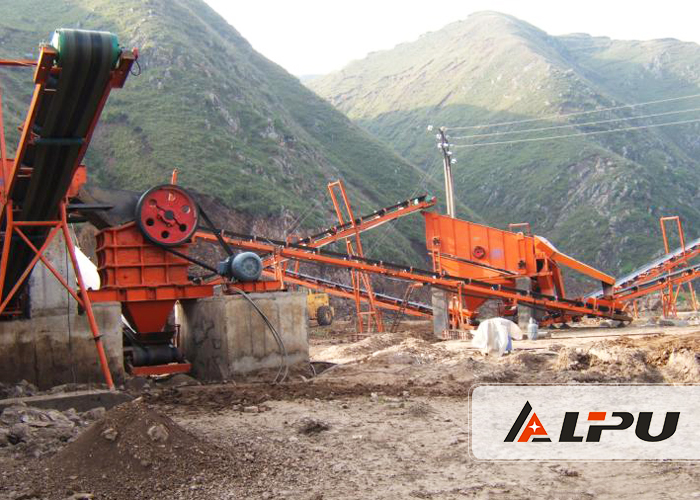

    The Working Site of Stone Crushing Plant
