Brand Name : | Lipu |
Model Number : | PEV600×900 |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |
High Capacity Primary Mine Crushing Equipment Jaw Crusher For Ores
/ Rocks
Jaw Crusher Introduction
Jaw crusher is mainly used for crushing a variety of ores and
medium-grained bulk materials, also it can process the rock with
compression strength not more than 320Mpa. Jaw crusher can be
divided into coarse and fine two kinds of crushing machine.
Complete jaw crusher specifications, which feed particle size of
25mm ~ 750mm, is the first choice for primary crushing equipment.
PE series jaw crushers are suitable for rough flow, PEX series for
second and fine crushing. Jaw crusher is made of high-strength
steel, which is a moulding casting with wear, compression, long
life and other advantages.
Jaw Crusher Features
1. High capacity 1-1000 tons per hour.
2. High reliability.
3. Crushing cavity is able to meet a big feeding.
4. Movable jaw assembly adopts a high-quality steel casting and
heavy eccentric shaft has also adopted forging billet for
processing.
5. Use of finite element analysis technology helps to reach both
light weight and high reliability.
6. Equipped with wedge adjustment devices, enable to realize
automatic control and stepless adjustment.
Technical parameters:
Model | Max Input size (mm) | Outlet size (mm) | Capacity (t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight (t) |
PEV400×600 | 340 | 40-80 | 20-65 | 30-37 | 2500×1750×1950 | 8.5 |
PEV500×750 | 425 | 45-150 | 45-107 | 45-55 | 3100×1980×2290 | 11.5 |
PEV600×900 | 510 | 75-180 | 100-200 | 55-75 | 3450×2360×2780 | 17 |
PEV750×1100 | 640 | 80-190 | 140-320 | 90-110 | 3750×2580×3180 | 24 |
PEV860×1100 | 730 | 100-200 | 200-500 | 110-132 | 4870×2850×3170 | 32 |
PEV900×1200 | 760 | 100-220 | 220-600 | 110-132 | 3500×2850×3290 | 48 |
PEV1000×1200 | 850 | 150-300 | 280-750 | 132-160 | 4700×2930×3460 | 52 |
PEV1200×1500 | 1020 | 180-340 | 350-950 | 160-220 | 6380×5310×3710 | 83 |
PEV1500×1800 | 1250 | 210-360 | 500-1100 | 280 | 7460×6240×4250 | 122 |
PEV250×1000 | 210 | 25-50 | 20-50 | 30-37 | 1680×2050×1370 | 7 |
PEV250×1200 | 210 | 25-50 | 25-65 | 37-45 | 1680×2180×1370 | 8 |
PEV300×1300 | 250 | 20-90 | 30-105 | 55-75 | 2150×2390×1590 | 11 |

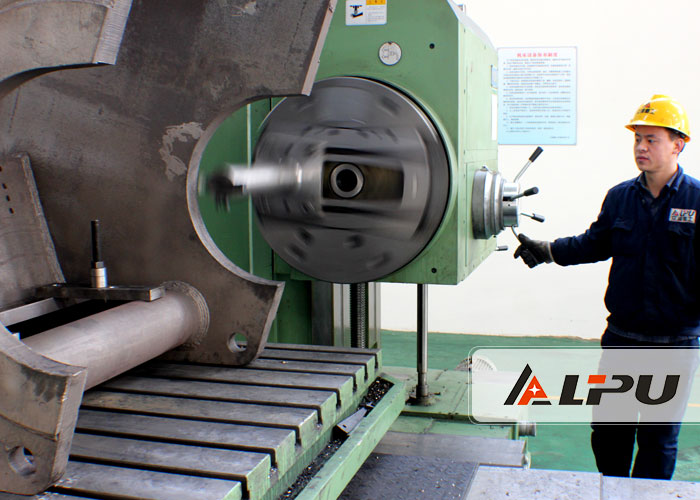

Jaw Crusher Machining Process :
![]() |
