    Horizontal / Inclined Mining Conveyor Systems Portable Belt Conveyor for Sand Coal

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : 1000
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Horizontal / Inclined Mining Conveyor Systems Portable Belt Conveyor for Sand Coal

    Horizontal or Inclined Mining Conveyor Systems Portable Belt Conveyor for Sand Coal

    Introduction of Belt Conveyor

    Belt conveyor is a kind of friction drive machine which transports materials continuously. It is mainly made of the rack, conveyor belt, idler, roller, motor, coupling and gear. It can be used alone or be packaged with other conveying equipment into horizontal or inclined handling system.

    Advantages of Belt Conveyor

    1. Driving unit flexible connection
    The driving unit is connected by motor, fluid coupling, backstop and reducer orderly, reducer is connected with driving drum by coupling.

    2. Outstanding performance
    Remarkable transporting ability, small transportation resistance, low power consumption.

    3. Drum external is equipped with cleanser
    Drum external is provided with cleaner for cleaning after unloading the material remains adhered to the belt working surface.

    4. Belt with various performance is optional
    Heat-resistant, acid and alkali resistant, corrosion resistant, oil resistant belt is for your choice.

    5. Different belt width and conveyor angle can meet your requirement
    Conveyor belt width ranges from 500~2000mm, the conveyor max. Inclined angle can up to 30°.

    6. Wide application area
    It is a durable and reliable machine widely applied to grain, salt, ore, sand, coal, mineral, chemical, power plant, metallurgy, etc.

    Technical Parameters:

    Belt width (mm)

    Length (m) / Power (kW)

    Capacity (t/h)

    500

    ≤12/3

    12-20/3-5.5

    20-30/5.5-7.5

    40-80

    650

    ≤12/4

    12-20/4-5.5

    20-30/5.5-11

    80-120

    800

    ≤10/4

    10-15/4-5.5

    15-30/5.5-15

    120-200

    1000

    ≤10/5.5

    10-20/5.5-11

    20-40/11-22

    200-320

    1200

    ≤10/7.5

    10-20/7.5-15

    20-40/15-30

    290-480

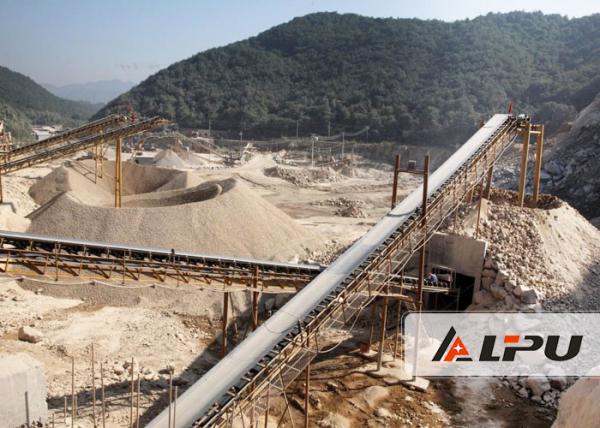

    Belt Conveyor Details Picture:

    Quality Horizontal / Inclined Mining Conveyor Systems Portable Belt Conveyor for Sand Coal for sale
