40-140 TPH XSD Series River Sand Washing Machine In Sand Making Plant

Introduction of Sand Washer:

River sand washing machine is a kind of water washing equipment to be matched with the sand making machine. It can reduce the dust and stone powder which mixes with the final sand, so as to improve the quality of the sand. XSD series Sand washing machine is used in building plant, quarry, concrete plant, dam building, glass factory.

Characteristics of Sand Washer:
1. Reasonable structure,
2. Large capacity,
3. Low consumption,
4. Little loss of the sand during the washing process,
5. Low failure rate.

Working Principle of Sand Washer:

The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impeller to finish the washing task.

Technical parameters:

Note: No further notice if the technical parameters change .

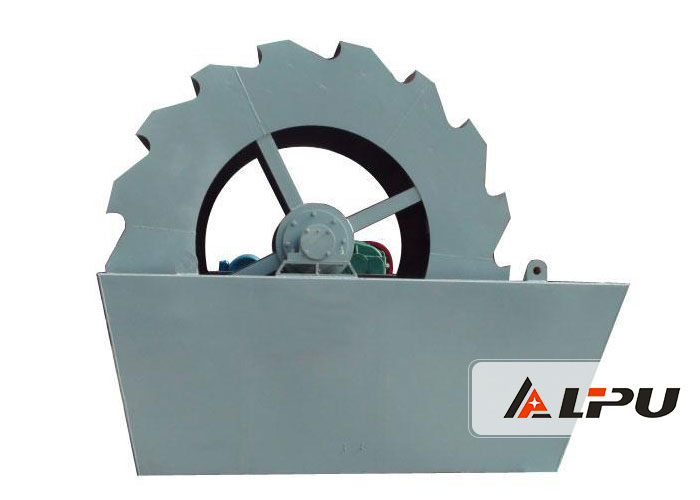

Product Picture Show:

Working Site of Sand Washing Machine:
