    High Aluminum Liner Mining Ball Mill For Quartz Powder , Ceramic Ball Mill

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 900x1800
    Certification : ISO9001-2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    High Aluminum Liner Mining Ball Mill For Quartz Powder , Ceramic Ball Mill

    High Aluminum Liner Mining Ball Mill For Quartz Powder , Ceramic Ball Mill


    High aluminum liner ball mill introduction:


    In addition to the internal ceramic components, other parts is same with common ball mill. It won't

    produce pollution and can keep the high purity and stability of raw material, which can still greatly

    improve raw material production capacity, it saves grinding time and expands the grinding space.


    Application:


    It’s widely used in ceramics, glass, enamel, pigment, chemical industry.

    The ball mill's shape is horizontal cylinder rotate shape, main part composed of feeding device,

    discharging device, gearing, grading screening help equipment and other major parts. Lining systems

    can be easily replaceable, inside the cylinder have high aluminum liners, and good wear resistance and

    economy.


    Features of high aluminum liner ball mill:


    1. Stable performance,

    2. Special and new design;

    3. Easy to be operated.

    4. High working efficiency


    Technical Data


    Model


    Effective volume

    (m3)


    Max. steel ball load (t)

    Capacity (t/h)

    Power

    (kW)


    Rotary speed(rpm)

    Weight

    (t)

    MQG

    MQY

    MQS

    MQG

    MQY

    MQS

    φ900×1800

    1

    1.3

    1.7

    2

    0.9-1.6

    1.7-3.2

    2-3.7

    15

    37

    4.2

    φ900×2100

    1.1

    1.5

    1.9

    2.3

    1-1.9

    2-3.7

    2.3-4.3

    18.5

    37

    4.9

    φ900×3000

    1.6

    2.2

    2.8

    3.3

    1.4-2.7

    2.9-5.4

    3.3-6.2

    30

    37

    7.6

    φ1200×2400

    2.4

    3.3

    4.1

    4.9

    2.2-4

    4.3-8

    5-9.2

    30

    35

    8.7

    φ1200×3000

    3

    4.1

    5.2

    6.2

    2.7-5

    5.4-10

    6.2-12

    37

    35

    13

    φ1200×4500

    4.4

    6.2

    7.7

    9.3

    4-7.5

    8.1-15

    9.3-17

    55

    35

    14

    φ1500×3000

    4.8

    6.6

    8.3

    10

    4.3-8

    8.6-16

    10-19

    75

    29

    15

    φ1500×4500

    7.1

    10

    12

    15

    6.5-12

    13-24

    15-28

    110

    29

    18

    φ1500×5700

    9

    13

    16

    19

    8.2-15

    16-31

    19-35

    130

    29

    24

    φ1830×3000

    7.1

    10

    12

    15

    6.4-12

    13-24

    15-28

    130

    24.5

    28

    φ1830×4500

    10.6

    15

    18

    22

    10-18

    19-36

    22-41

    155

    24.5

    32

    φ1830×6500

    15.3

    21

    27

    32

    14-26

    28-52

    32-60

    210

    24

    35

    φ1830×7000

    16.5

    23

    29

    34

    15-28

    30-56

    35-64

    245

    24

    37

    φ2100×3000

    9.4

    13

    16

    20

    9-16

    17-32

    20-37

    155

    23.5

    42

    φ2100×3600

    11.3

    16

    20

    24

    10-19

    21-38

    24-44

    180

    23.5

    44

    φ2100×4500

    14.1

    20

    25

    30

    13-24

    26-48

    30-55

    245

    23.5

    52

    φ2100×7000

    22

    31

    38

    46

    20-37

    40-74

    46-86

    380

    23.5

    57

    φ2200×3600

    12.5

    17

    22

    26

    11-21

    23-42

    26-49

    210

    21.5

    52

    φ2200×4500

    15.6

    22

    27

    33

    14-26

    28-53

    33-61

    245

    21.5

    54

    φ2200×6500

    22.5

    31

    39

    47

    20-38

    41-76

    47-88

    320

    21.5

    60

    φ2200×7000

    24.2

    34

    42

    51

    22-41

    44-82

    51-95

    380

    21.5

    63

    φ2200×8000

    27.8

    38

    48

    57

    26-46

    49-90

    57-104

    420

    21.5

    67

    φ2400×3600

    15

    21

    26

    31

    14-25

    27-51

    31-58

    280

    21.3

    60

    φ2400×4500

    18.7

    26

    33

    39

    17-32

    34-63

    39-73

    320

    21.3

    71

    φ2400×6000

    24.9

    35

    43

    52

    23-42

    45-84

    52-97

    400

    21.3

    84

    φ2400×7000

    29.1

    41

    51

    61

    26-49

    53-98

    61-113

    475

    21.3

    92

    φ2700×3600

    18.8

    26

    33

    39

    17-32

    34-64

    40-73

    380

    20.6

    82

    φ2700×4500

    23.5

    33

    41

    49

    21-40

    43-80

    49-92

    480

    20.6

    90

    φ2700×6000

    31.4

    44

    55

    66

    29-53

    57-106

    66-122

    560

    20.6

    105

    φ2700×7000

    36.6

    51

    64

    77

    33-62

    67-124

    77-143

    630

    20.6

    110

    φ3200×4500

    33.5

    47

    58

    70

    31-57

    61-113

    70-131

    800

    18.2

    137

    φ3200×6000

    44.7

    62

    78

    94

    41-76

    81-151

    94-174

    1000

    18.2

    160

    φ3200×7000

    52.2

    73

    91

    109

    47-88

    95-176

    110-203

    1120

    18.2

    185

    φ3600×4500

    42.8

    60

    75

    90

    39-72

    78-145

    90-167

    1120

    17

    200

    φ3600×6000

    57.1

    80

    100

    119

    52-96

    104-193

    120-223

    1400

    17

    220

    φ3600×7000

    66.6

    93

    116

    139

    61-113

    121-225

    140-260

    1600

    17

    245

    φ3600×8000

    76.1

    106

    133

    159

    70-129

    138-257

    160-297

    1600

    17

    270

    φ3600×9000

    85.6

    120

    149

    179

    78-145

    156-289

    180-334

    1800

    17

    285

    φ3800×6500

    69.1

    96

    121

    145

    63-117

    126-234

    145-270

    1800

    16.7

    277

    φ3800×8500

    90.4

    126

    158

    189

    82-153

    165-306

    190-353

    2250

    16.7

    300

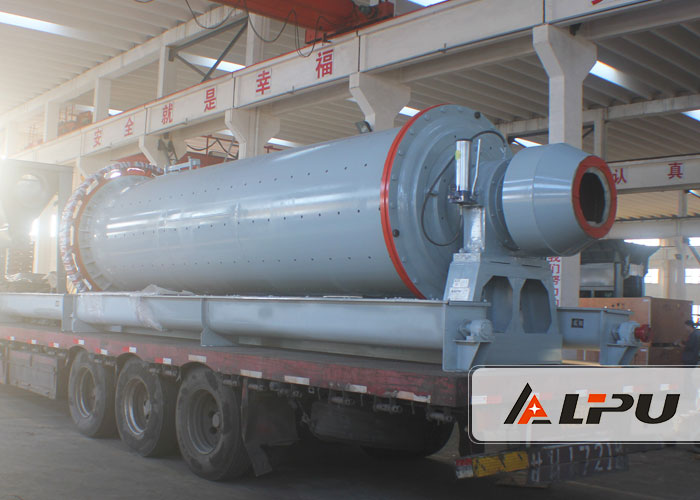

    Product Picture Show:
