Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers

    Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers
    • Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers
    • Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers
    • Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers
    • Buy cheap Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill from wholesalers

    Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 600×840
    Certification : ISO9001-2008,CE,IQNet
    Price : negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 90 Set/Sets per Quarter
    Delivery Time : 30-45 working days after received your payment
    • Product Details
    • Company Profile

    Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill

    Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill


    Brief Introduction :


    Intermittent ball mill is mainly used in materials mixing and grinding, it can be used not only in dry type

    grinding, but also can be used in wet type grinding. It can control the grinding time according to the

    requirement of the grinding size, and also it can adopt different liner type according to production

    (requirement); it is suitable for grinding operation with small size requirements and small production

    capacity requirement.


    Performance features :


    1. Compatible with various materials, wide application scope;

    2. Simple structure, lower cost, small investment, and it saves more energy and electricity compare with

    similar products;

    3. Prevent dust leakage for its good sealed performance;

    4, Uniform product size, simple operation, reliable performance and can be used safely.


    Technical Parameters :


    Model

    Effective volume(m3)

    Rotary speed

    (r/min)

    Once feeding quantity(t)

    Power

    (kW)

    Weight /without liner

    (t)

    φ600×840

    0.23

    55

    0.1

    1.5

    1.35

    φ800×940

    0.47

    40

    0.2

    2.2

    1.42

    φ950×1020

    0.72

    34

    0.3

    3

    1.5

    φ1200×1400

    1.58

    34

    0.5

    4

    2.5

    φ1450×1760

    2.91

    26.5

    1

    11

    3.5

    φ1800×2100

    5.3

    23

    1.5

    15

    4.5

    φ2000×2300

    7.2

    16

    2

    22

    5.9

    φ2240×2600

    10

    18.7

    3

    30

    7.4

    φ2450×2800

    13

    16

    4

    37

    9.5

    φ2700×2900

    16.6

    16

    5

    37

    10.5

    φ2800×3100

    19

    15

    6

    45

    12.4

    φ2850×4000

    25.5

    14

    8

    55

    16

    φ3000×4650

    32.5

    16

    14

    90

    20.8

    φ3200×4650

    37.5

    16

    18

    90

    23

    φ3400×4650

    43

    12.5

    23

    90

    25

    φ3400×6300

    57

    12.5

    30

    110

    30

    φ3600×6300

    64

    11.8

    36

    110

    32

    φ3600×6500

    66

    11.8

    38

    110

    32

    φ3600×6700

    68

    11.8

    40

    132

    35

    φ3600×7170

    68

    11.8

    40

    110

    35

    φ4000×7860

    99

    10

    60

    185

    48

    φ4100×11200

    147

    10

    100

    315

    73

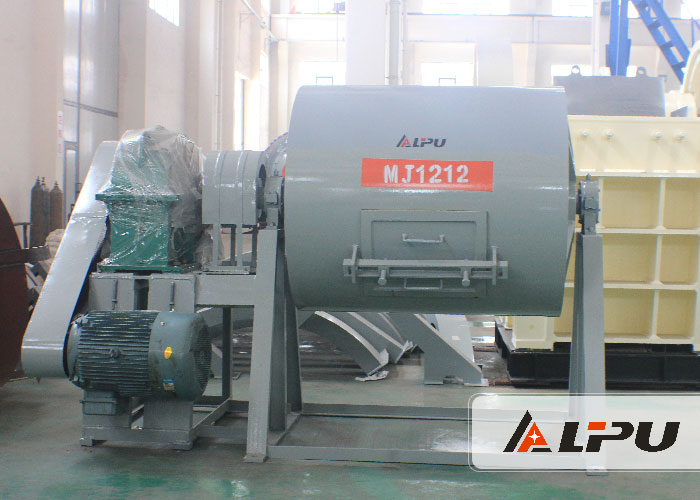

    Product Pictures Show :


    Quality Intermittent Mining Ball Mill / Small Capacity Dry Grinding Ball Mill for sale
