    Low Consumption Limestone Impeller Feeder In Chemical Plant ISO CE IQNet

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : According to customer
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    Low Consumption Limestone Impeller Feeder In Chemical Plant ISO CE IQNet

    Low Consumption Limestone Impeller Feeder In Chemical Plant ISO CE IQNet

    Product Introduction:

    Impeller feeder is used to prevent the coal dust or ash particle not happen air channeling phenomenon,

    maintain the powder flow smoothly from a pressure range into another pressure range,

    the above and below flange dimension is the same.

    Application Idustry

    Impeller feeder is applicable to power plants, cement plants, chemical plants and other industries as

    conveying material system,to convey dry powder material air lock or quantitative feeding. It can also be

    used for dust collector and air preheaters bucket to discharge the ash, it is ideal accessory transport to

    unloading and batching system.

    Product feature

    1, Cycloid pin wheel reducer, the transmission mechanism is simple and reliable.
    2, Rotary valve body material is made of cast iron, high temperature wear resistance, not easy to deformation because of temperature changes.
    3, Rotary valve bearing and bearing housing are away from the body, the dust is not easy to enter inside
    the bearing, and can reduce the influence of bearing material with high temperature, long service life.
    4, The internal star impeller made of 45# steel or Stainless steel, wear resistance.

    Technical Data:

    ModelJL200JL300JL400JL500JL630JL1000
    Impeller size(mm)200×200300×300400×400500×500630×6001000×1000
    Displacement per revolution(m³/rpm)0.0050.0180.0450.050.090.11
    Impeller speed(rpm)10191925.525.535253520282028
    Theory feeding capacity(m³/h)362027689075105108126154192
    Rated feed ability(m³/h)2415206080709098110132160
    Motor power(kw)0.750.751.52.234445.55.57.57.5
    Reducer ModelBW1BW2BW2BW3BW4BW5
    Max material size(mm)3045506075110

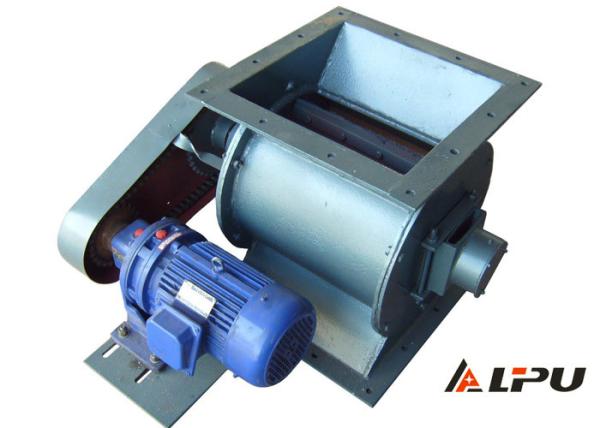

    Product Picture Show:
