Automatic Industrial Rotary Drying Equipment For Fertilizer / Clay / Animal Dung

Equipment Introduction:

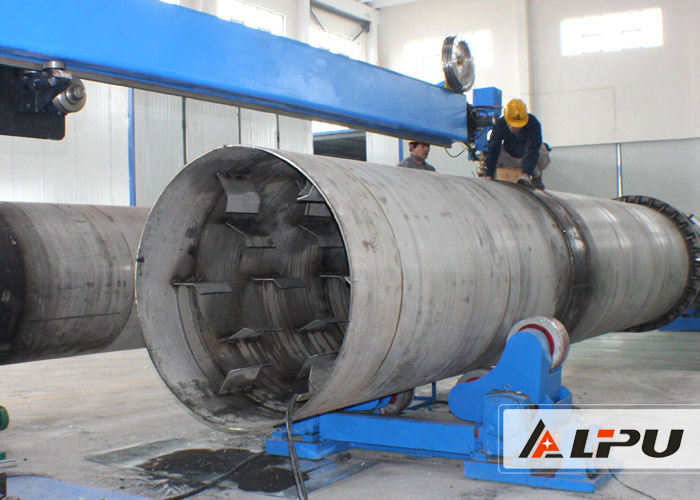

Automatic rotary industrial drying equipment is traditional and reliable drying equipment, the material will

be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the

moisture in the material is continuously evaporated when the material contacts with the hot wind inside

of the cylinder, to achieve the purpose of drying materials. It is suitable for drying sludge, coal, sand,

animal dung, fly ash, clay, coal slime, ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust,

desulfurization gypsum, compound fertilizer,etc.

Performance Characteristics:

1. PLC automatic control system can be adopted in the entire system, which contains advanced testing

equipment, thermometer, temperature control device, fault alarm and automatic shutdown protection

etc;

2. New feeding and discharging device, put an end to the phenomenon of the plug in

feeding, incontinuity, nonuniform and material return of traditional dryer, and reduce the load of dust

removal system;

3. The adjustable stainless steel plates’ sealing are adopted at the connection of the feeding and

discharging devices, it’s with good sealing property, which greatly reduces the thermal losses inside of

the cylinder, so as to directly reduce the fuel consumption;

4. Counterflow drying method, it can obtain higher evaporation intensity; downstream drying method and

indirect drying method are suitable for drying materials which are sensitive to temperature;

5. Fuel can be diesel oil, heavy oil, and natural gas, gas, coal, electricity and biomass particles for

environmental protection;

6. All kinds of different types of lifting plates combination, to ensure the hot air is in full contact with the

material, and meet the needs of drying different material.

Technical Parameters:

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
