High Humidity Material Industrial Drying Equipment With PLC
Automatic Control
Material Description:
High humidity material generally refers to the material with the
water content of 50%-80%, the common
high humidity materials include pork / chicken / cow manure, bean
dregs, drug residue, cassava dregs,
lees, fructose powder, soy sauce and vinegar residue, etc., it’ll
need to be dried to the safe storage
moisture-13%, if you want to make rational utilization of these
materials.
The most traditional disposal way of the livestock manure is to
sell as farmyard manure with the low
price and be used directly as the agricultural fertilizer, its
economic value is not to fully explored and
utilized. In fact, these are the precious fodder and fertilizer
resources, if it can be developed and utilized,
it will have great significance to the organic fertilizer
manufacturing, to the development of planting and
breeding industry, to promote agricultural production and income,
energy saving and pollution-free green
food, green agriculture development, to environmental protection
and people's health. It makes use of
waste to produce useful material such as fertilizer.
Process Flow:
The dewatered material will be transported to feeding head of the
dryer through the screw conveyor after
scattering, and then it will be sent into the inside of the dryer
through the unpowered spiral sealing
feeder (the patent technology of our company), and going through
several following working areas after
getting into the dryer:
1. Material leading-in area
The material will come into contact with the high temperature
negative pressure air after getting into this
area and plenty of water will be rapidly evaporated, and the
material can’t be formed into sticky stuff
under the stirring of large guide angle lifting plate.
2. Cleaning area
The material curtain will be formed while the sludge is lifted up
at this area, and it will cause the material
stick on the cylinder wall while it’s falling down, and the
cleaning device is installed at this area (Lifting
style stirring plate, X type second time stirring plate, impacting
chain, impacting plate), the material can
be quickly removed from the cylinder wall by the cleaning device,
and the cleaning device can also
crush the materials which are bonded together, so as to increase
the heat exchange area, increase the
time of heat exchange, avoid the generation of wind tunnel
phenomenon, improve the drying rate.
3. Inclined lifting plate area
This area is the low temperature drying area, the slime of this
area is at the low moisture and loose
state, and there is no adhesion phenomenon at this area, the
finished products reach the moisture
requirements after the heat exchange, and then enter the final
discharge area.
4. Discharging area
There aren’t stirring plates at this area of the dryer cylinder,
and the material will be rolling to the
discharging port.
The material gradually becomes loose after drying, and discharged
from the discharging end, and then
sent to the designated position by the conveying device, and the
fine dust drawn out along with the tail
gas is collected by the dust collector.
Hot air enters into the drying machine from the feeding end, and
the temperature is gradually reduced at
the same time of material convection heat transfer, and the water
steam taken out under the suction of
induced draft fan, and then emitted into the air after processing.
System Advantages:
New internal structure strengthens the cleaning of dispersed
material and heat conduction, eliminate the
sticking phenomenon of the barrel body’s inner wall, it’s more
adaptable to the material moisture and
stickiness, the heat exchanging area and the drying efficiency are
increased. The operating parameters
can be changed according to different materials, and the heat
exchange of the material in the dryer is
more fully. The coal, oil, natural gas, liquefied petroleum gas can
be used as fuel. It’s determined
according to material requirements and local natural advantages, to
improve production efficiency and
economic benefits. The PLC automatic control system can be adopted
in the entire system, the system
contains advanced testing equipment: temperature measurement,
temperature regulation (it can be
adjusted at any time according to the needs of the material), the
function of automatic fault alarm,
automatic shutdown protection, etc.
Technical Data:
| Model | Shell diameter(mm) | Shell length(mm) | Shell volume(m³) | Rotary speed(r/min) | Power(kW) |
| HG0.6×6 | 600 | 6000 | 1.7 | 1-8 | 3 |
| HG0.8×8 | 800 | 8000 | 4 | 1-8 | 4 |
| HG1×10 | 1000 | 10000 | 7.9 | 1-8 | 5.5 |
| HG1.2×6 | 1200 | 6000 | 6.8 | 1-6 | 5.5 |
| HG1.2×8 | 1200 | 8000 | 9 | 1-6 | 5.5 |
| HG1.2×10 | 1200 | 10000 | 11.3 | 1-6 | 7.5 |
| HG1.2×11.8 | 1200 | 11800 | 13.4 | 1-6 | 7.5 |
| HG1.5×8 | 1500 | 8000 | 14.1 | 1-5 | 11 |
| HG1.5×10 | 1500 | 10000 | 17.7 | 1-5 | 11 |
| HG1.5×11.8 | 1500 | 11800 | 21 | 1-5 | 15 |
| HG1.5×15 | 1500 | 15000 | 26.5 | 1-5 | 15 |
| HG1.8×10 | 1800 | 10000 | 25.5 | 1-5 | 15 |
| HG1.8×11.8 | 1800 | 11800 | 30 | 1-5 | 18.5 |
| HG1.8×15 | 1800 | 15000 | 38.2 | 1-5 | 18.5 |
| HG1.8×18 | 1800 | 18000 | 45.8 | 1-5 | 22 |
| HG2.2×11.8 | 2200 | 11800 | 44.8 | 1-4 | 22 |
| HG2.2×15 | 2200 | 15000 | 53.2 | 1-4 | 30 |
| HG2.2×18 | 2200 | 18000 | 68.4 | 1-4 | 30 |
| HG2.2×20 | 2200 | 20000 | 76 | 1-4 | 30 |
| HG2.4×15 | 2400 | 15000 | 67.9 | 1-4 | 30 |
| HG2.4×18 | 2400 | 18000 | 81.4 | 1-4 | 37 |
| HG2.4×20 | 2400 | 20000 | 90.5 | 1-4 | 37 |
| HG2.4×24 | 2400 | 24000 | 108.6 | 1-4 | 45 |
| HG2.8×18 | 2800 | 18000 | 110.8 | 1-3 | 45 |
| HG2.8×20 | 2800 | 20000 | 123.2 | 1-3 | 55 |
| HG2.8×24 | 2800 | 24000 | 147.8 | 1-3 | 55 |
| HG2.8×28 | 2800 | 28000 | 172.4 | 1-3 | 75 |
| HG3×20 | 3000 | 20000 | 141.4 | 1-3 | 55 |
| HG3×24 | 3000 | 24000 | 169.7 | 1-3 | 75 |
| HG3×28 | 3000 | 28000 | 198 | 1-3 | 90 |
| HG3.2×24 | 3200 | 24000 | 193 | 1-3 | 90 |
| HG3.2×28 | 3200 | 28000 | 225.2 | 1-3 | 90
|

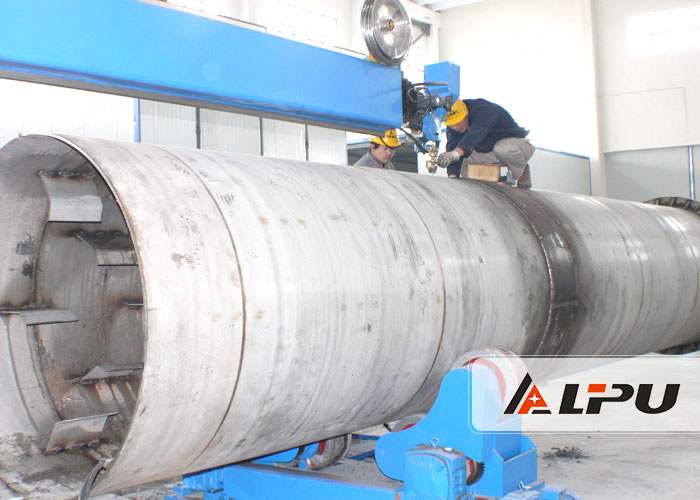

Rotary Dryer Processing In Our Workshop :
