Energy Saving Granular Material Industrial Drying Equipment For Quartz

Material Description:

Granular material generally refers to the material with good fluidity, not easy to be bonded and without

much initial water content, such as, yellow sand in the dry powder mortar industry, all kinds of specific

dimensioned sand used in the foundry industry, blast furnace slag used in the building materials cement

industry, small size clay, small particles of dust material, limestone, quartz sand, slag, iron ore, sulfuric

acid slag, iron ore powder, bentonite, fly ash, quartz sand, the sand of the sea and pomegranate sand,

etc. used in the chemical industry, which are anti chemical changes and anti-high temperature.

Process Flow:

The sand will be fed into the hopper by the wheel loader after a period of time natural dehydration, and

fed to the conveying device by the feeder at the bottom of the hopper, and then transported to the

feeding head end of the dryer.

When material enters the dryer, the special feeder is adopted to do the sealing in order to minimize the

entry of the cool air. The heat exchange happens with the hot air introduced from the heat passing

through pipe while the material is entering the dryer. The material is lifted up and moved forward with the

rotation of the dryer, enter the middle cylinder from the inner cylinder and return, and then move to the

discharging end after entering the outer cylinder. The special unloader is still adopted while the material

is discharged from the dryer to prevent the cool air and maximize the reduction of the entry of cool air,

to increase the efficiency of the dryer and reduce the pressure load of the induced draft fan and the

burden of later stage dust collecting.

According to the needs, the material can be transported to the finished products’ bin by the conveying

device or packed after discharging from the dryer. The air temperature at the discharging end will be

reduced to 80-120℃ with increased humidity,

After the heat exchange, the air temperature in the discharging end is reduced to 80-120℃ with the

increased humidity, under the function of the induced draft fan, it will be discharged into the atmosphere

after the primary and secondary dust remover processing.

System Advantages :

1. High thermal efficiency

Heat preservation material with high heat resistance, combined with feature of the heat utilization of

three cylinder dryer, the energy saving effect is obvious.

2. Low equipment investment

The material temperature is <50 degree, which can be directly entered into the material warehouse, and

cooling device is not required; tail gas temperature is low, the dust removal equipment is with longer

service life.

3. Small ground space, easy to install

Its covered area is 50% less than that of the single cylinder dryer, construction investment reduced by

50% and the electricity consumption is reduced by 60%, the layout of energy saving granular material

industrial drying equipment is compact with simple process flow.

4. Energy saving

By adopting thermal resistant material on surface of shell, so as to prevent heat loss. In this way, it

reduces fuel consumption, that is to say, energy saving.

Technical Parameters:

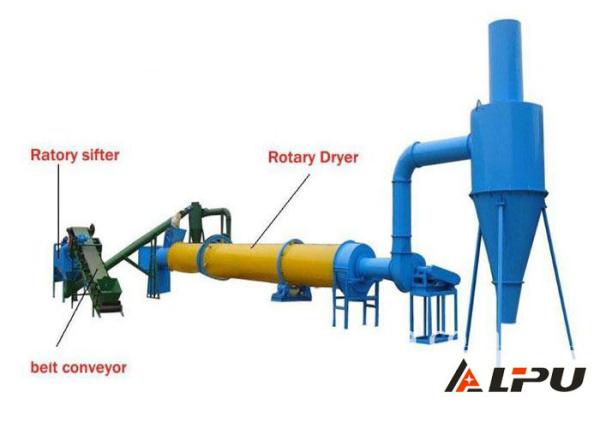

Product Picture Show:

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
