Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum from wholesalers

    Buy cheap Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum from wholesalers
    • Buy cheap Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum from wholesalers
    • Buy cheap Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum from wholesalers

    Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : 1×5
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum

    Automatic Intermittent Industrial Industry Drying Equipment For Desulfurization Gypsum
    Equipment Introduction:
    Automatic Intermittent industrial drying equipment is improved on the basis of traditional rotary drum
    dryer, the feeding, drying and discharging process of the dryer is intermittent, the drying time can be set
    up according to the temperature of drying medium, the moisture of the feeding and discharging material
    and other factors. It is applicable for drying sludge, coal, sand, animal dung, fly ash, clay, coal slime,
    ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust, desulfurization gypsum, compound
    fertilizer and other materials by utilizing of tail gas waste heat. PLC automatic control system can b
    adopted in the entire system, which contains advanced testing equipment, thermometer, temperature
    control device, fault alarm and automatic shutdown protection etc.
    Working Principle:
    The corotation of the cylinder is the feeding stage when the feeder starts to work, and the feeder stops
    once the set feeding quantity is reached, and then the cylinder rollbacks and enters the stage of drying,
    the drying medium will be drew into the cylinder of the dryer by the induced draft fan at the end of the
    drying system, to do the heat exchange with the materials being lifted up constantly inside of the dryer,
    the evaporated moisture is taken out continuously by the hot air, the material to be dried to qualified
    moisture content after a certain period of time, and then the cylinder corotates once again, the dried
    material is discharged from the dryer cylinder under the push of discharging screw, one time of drying
    process has been finished.
    Technical Parameters:


    Model


    Cylinder diameter

    (mm)


    Cylinder length (mm)


    Cylinder volume (m3)


    Cylinder rotary speed

    (r/min)


    Max loading

    (m3)


    Power

    (kW)

    1×5

    1000

    5000

    3.9

    1-8

    0.6

    3×2

    1.2×6

    1200

    6000

    6.8

    1-8

    1

    4×2

    1.5×7

    1500

    7000

    12.4

    1-8

    1.9

    5.5×2

    1.8×7

    1800

    7000

    17.8

    1-5

    2.7

    7.5×2

    2×8

    2000

    8000

    25.1

    1-5

    3.8

    11×2

    2.2×8

    2200

    8000

    30.4

    1-5

    4.6

    7.5×4

    2.4×9

    2400

    9000

    40.7

    1-5

    6.1

    11×4

    2.8×10

    2800

    10000

    61.6

    1-3

    9.2

    15×4

    3×10

    3000

    10000

    70.7

    1-3

    10.6

    18.5×4

    3.2×10

    3200

    10000

    80.4

    1-3

    12.1

    18.5×4

    3.6×10

    3600

    10000

    101.8

    1-3

    15.3

    22×4

    4×12

    4000

    12000

    150.8

    1-3

    22.6

    37×4

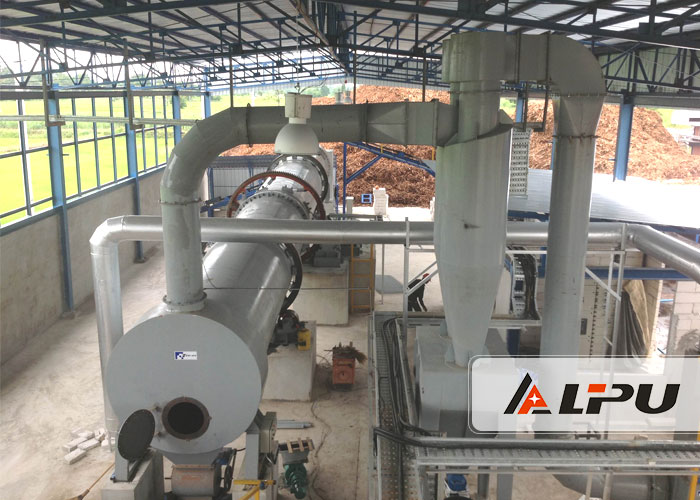

    Industrial Drying Plant In Thailand:
