    High Efficiency Mine Crushing Equipment and DMC Series Pulse Bag Filter Dust Collector

    Ask Lasest Price
    Brand Name : Lipu
    Model Number : DMC32
    Certification : ISO9001:2008,CE,IQNet
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/quarter
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    High Efficiency Mine Crushing Equipment and DMC Series Pulse Bag Filter Dust Collector

    High Efficiency Mine Crushing Equipment and DMC Series Pulse Bag Filter Dust Collector

    Brief Introduction:

    DMC Series Pulse Bag Filter Dust Collector can collect and separate the air dust and particles .It can

    not only coordinate with crusher and vibrating screen to purify general dust gas, but also deal with high

    concentration dust gas. It is applied to recover the final products getting from the ball mill, dryer, and

    classifier. It is widely used for dust gas purification processing system in building material, metallurgy,

    mining, coal, nonmetal ore superfine powder processing industries. DMC Series Dust Collector is the

    ideal equipment for environmental protection.

    Performance features:

    1, Offline pulse remove the dust with high efficiency;

    2, Adopt high quality filter material to adapt to different conditions; long service life of filter bags;

    3, Gas chamber structure, modular manufacturing, simple for installation, reliable operation.

    Technical Parameters:


    Model

    Total filter area

    (m2)

    Filtering wind speed(m/min)

    Input air (m3/h)

    Qty of filter bag(pc)

    Specification of filter bag (mm)

    Air consum-ption(m³/h)


    Density

    of inlet

    (g/Nm3)

    Density

    of outlet

    (mg/Nm3)

    Power

    (kW)

    Weight(t)

    DMC

    (A)

    DMC

    (B)

    DMC32

    24

    1.04-1.67

    1500-2400

    32

    Φ120x2000

    0.032

    ≤200

    ≤50

    1.5

    1.4

    1.3

    DMC48

    36

    1.15-1.62

    2500-3500

    48

    Φ120x2000

    0.048

    ≤200

    ≤50

    2.2

    1.7

    1.5

    DMC64

    48

    1.21-1.74

    3500-5000

    64

    Φ120x2000

    0.064

    ≤200

    ≤50

    3

    1.9

    1.7

    DMC80

    60

    1.25-1.67

    4500-6000

    80

    Φ120x2000

    0.08

    ≤200

    ≤50

    5.5

    2.4

    2.2

    DMC96

    72

    1.27-1.62

    5500-7000

    96

    Φ120x2000

    0.096

    ≤200

    ≤50

    5.5

    2.8

    2.6

    DMC112

    84

    1.28-1.68

    6500-8500

    112

    Φ120x2000

    0.11

    ≤200

    ≤50

    7.5

    3.2

    2.9

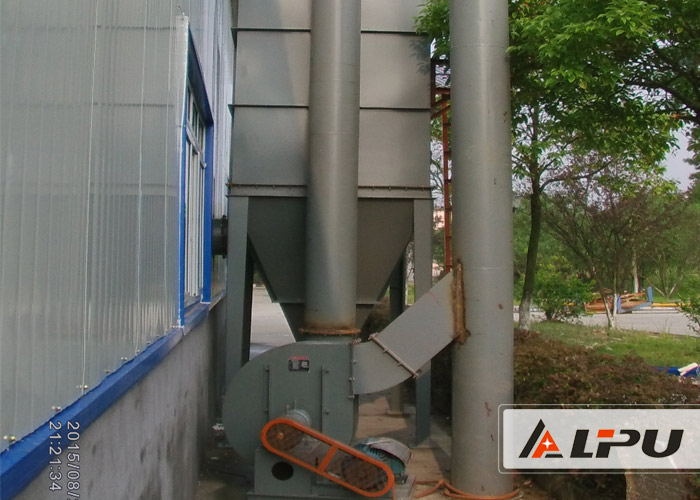

    Product Picture Show :
