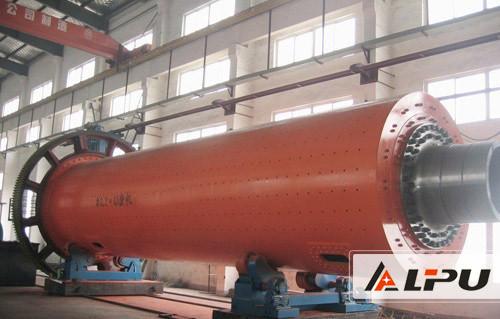

Cement Grinding Machine / Clinker Grinding Ball Mill Driven By Brim Gearwheel

Introduction of our Cement Ball Mill:

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers

and grids. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are

stage liners and ripple liners as well as steel balls. The shell rotates so as to generate centrifugal force,

and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding

force to the material. After the primary grinding, materials go into the second chamber through segregate

screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material

is discharged from the discharging mouth. Then the whole grinding process is ended.

The Application of our Cement Ball Mill

1) limestone crushing;

2) raw material storage and blending;

3) raw meal grinding;

4) raw meal homogenizing and kiln feeding;

5) kiln inlet, kiln middle, kiln head and pulverized coal preparation;

6) waste gas treatment at kiln inlet;

7) clinker and admixture storage;

8) cement grinding;

9) cement storage and packing;

Main Technical Parameters:

Case:

Ball Mill Delivered to Spain

Date: 2014
Location: Spain

    Lipu Heavy Industry Co., Ltd, headquartered in Pudong New District, Shanghai, is composed of Shanghai

Lipu Heavy Industry Co., Ltd and Jiangsu Lipu Heavy Industry Co., Ltd., which is a famous company

specialized in designing and manufacturing ore dressing machinery, crushing and drying equipment. Thanks

to our profession and rich experience, we become well known for supplying complete mineral processing

plants at 100-5000tons per day processing capacity and providing turnkey project service. We have

established long-lasting cooperation with many research institutions at home; we can do mineral beneficiation

experiment and design complete ore-dressing plant and non-standard equipment according to clients’

requirements.  We supply one-stop service for our customers: From the designing of the technological plans,

equipment manufacturing, installation, commissioning and operation.

    We have cultivated a professional technology and after-sales service team, and successfully achieved

ISO9001：2008 Quality Management Certificate and EU CE Certificate, and Russia GOST Certificate, etc.,

our products are well-known both in China and foreign countries, which have been exported to more than 60

countries, including Canada, Australia, Russia, Central Asia, Middle East, South America, Southeast Asia,

Northeast Asia, Africa, etc.

    We have well experienced technical team in our Technical Department and R&D Department with more than

30 technicians (5 senior engineers and more than 20 technicians).  In our factory, we have 200 sets of various

processing equipment, including complete inspection equipment, and the total hoisting tonnage is above 500

tons.  We guarantee product quality based on mature processing technic.  Since we have established long-

lasting relationship with forging company and logistic company, we can assure you quality products and timely

transportation.

    We devote ourselves to providing trustworthy product and value-added service for global customers and to

creating value for customers, which are the unanimous goal of all the Lipu employees. Under the guidance of

united, pragmatic, dedicated and innovative spirit of enterprise, we look forward to cooperating with you to

build a beautiful world and prosperous future together.
