Brand Name : | Lipu |
Model Number : | YG0830E4060 |
Certification : | ISO9001:2008,CE,IQNet |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 30sets/quarter |
Delivery Time : | 15-20 days |

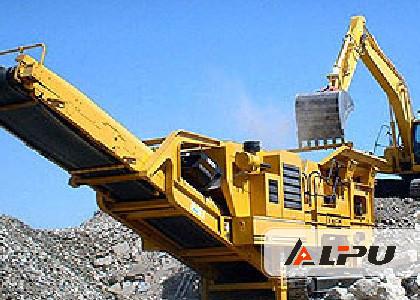

Flexibility Combined Mobile Crushing Plant for Hard Material
Crushing
Unit Components:
Model and Specification:
Model | YG0830E4060 | YG0830E5075 | YG9538E6090 | YG1149E75110 | YG1249E86110 |
Feeder Model | GZD0830 | GZD0830 | GZD9538 | GZD1149 | GZD1249 |
Crusher Model | PEV400×600 | PEV500×750 | PEV600×900 | PEV750×1100 | PEV860×1100 |
Iron Separator Model (optional) | RCYD(C)-5 | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
Tyre Parameters | Double- axle | Double- axle | Double- axle | Triplex-axle | Triplex-axle |
Belt Conveyor Model(mm) | B500×8.5m | B650×8.5m | B800×8.5m | B1000×10m | B1200×10m |
(mm) Belt Conveyor Discharging height(mm) | 3000 | 3000 | 3000 | 3200 | 3200 |
Side Belt Conveyor Model(optional) | B500×4m | B500×4m | B500×4m | B650×5m | B650×5m |
Side Belt Conveyor Discharging height (mm) | 2800 | 2800 | 2800 | 3100 | 3100 |
Generator Power(kW)(optional) | 80 | 120 | 160 | 200 | 250 |
Transport length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Transport Width(mm) | 2550 | 2550 | 2550 | 2550 | 2550 |
Transport Height (mm) | 3650 | 3800 | 4000 | 4300 | 4500 |
Operation Length(mm) | 9700 | 10500 | 11900 | 13100 | 14600 |
Operation Width(mm) | 2550 | 2550 | 2900 | 2950 | 3300 |
Operation Height(mm) | 4060 | 4200 | 4400 | 4810 | 5300 |
Weight(t) | 17 | 28 | 39 | 57 | 65 |
Our Combined Mobile Crushing Plant are newly designed rock crushing
& screening plants, which are
flexible, convenient and strong in mobility, so it can save a large
construction capital and relocation
cost. Raw Materials can be broken at the locale without being
transported again and also can be moved
with the promotional exploitation of the raw material, which saves
a large number of transportation
costs. We specialize in producing combined mobile crushers, screens
and other rock breaking and
minerals processing equipments.
On the basis of the professional technology, we optimize and
introduce newly two large combined
mobile crushing and screening plants: the tracked type and wheel
type combined mobile crushing
plants. Each large series is divided into three series: rough,
middle and fine crushing and screening
mobile plant. Therefore, our combined mobile crushers can fully
adapt to the various mobile crushing
and screening, which creates more new business opportunities for
customers while reducing the cost of
the production.
Features:
1. Built with high quality jaw crusher, cone crusher and impact
crusher;
2. Feeder, screen and belt conveyor on board;
3. Tractive steering shaft, convenient for road transportation;
4. Integrated with landing gears, quick and convenient installation
on;
5. Integrated motor and control panel;
![]() |
