100t/h Stone Crushing And Screening Plant In Ore Dressing Industry

Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd
Contact Now
    Buy cheap 100t/h Stone Crushing And Screening Plant In Ore Dressing Industry from wholesalers

    Buy cheap 100t/h Stone Crushing And Screening Plant In Ore Dressing Industry from wholesalers
    • Buy cheap 100t/h Stone Crushing And Screening Plant In Ore Dressing Industry from wholesalers

    100t/h Stone Crushing And Screening Plant In Ore Dressing Industry

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : According to customer
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment.
    • Product Details
    • Company Profile

    100t/h Stone Crushing And Screening Plant In Ore Dressing Industry

    Stationary Stone Crushing and Screening Plant Used in Ore Dressing Industry


    Brief Specifications of 100TPH Stationary Crushing and Screen Plant:


    Equipment

    Model

    Qty. (set)

    Capacity(t/h)

    Power (kw)

    Weight (t)

    Dimension (mm)

    Vibrating Feeder

    GZD 960*3800

    1

    100-160

    11

    5.00

    3850×1950×1630

    Jaw Crusher

    PEV600*900

    1

    50-120

    75

    18.00

    2290×2206×2370

    Fine Jaw Crusher

    PEX250*1000

    2

    20-60

    37*2

    7.8*2

    1550×1964×1380

    Vibrating Screen

    2YK1848

    1

    32-276

    18.5

    6.00

    5200×1800×1100

    Sand Maker

    VSI1145

    1

    250-360

    440

    21.00

    5100×2790×3320

    Belt Conveyor

    B1000/B800/B650

    6

    200-500

    7.5/5.5




    During material processing, the quality of an end product is determined, among other things, by stationary


    crusher and screen equipment. A basic distinction is made between pre-screenings, which is important for


    separating the material streams prior to crushing, and grading, which separates the different final


    aggregate fractions.


    Stationary Crusher and Screen Plant Separates Material Streams


    Pre-screening screening is used for separating the material streams. Contaminations are also eliminated


    in this first processing stage. The material is separated via the screening surface, which usually consists


    of a slotted screen or perforated plate. Grading determines the screening quality, meaning the quality of


    the end product. Grading screens have a screening surface which consists of, for instance, a wire screen


    for precise separation of the medium and fine aggregate fractions. The graded final aggregate fractions


    are finally discharged via belt conveyors and stockpiled.


    100TPH Stationary Crusher and Screen Plant usually consists of Vibrating Feeder (GZD960*3800), Jaw


    Crusher (PEV600*900), Jaw Crusher (PEX250*1000), Vibrating Screen (2YK1848), Sand Maker


    (VSI1145), Electric Control Panel and Belt Conveyors.

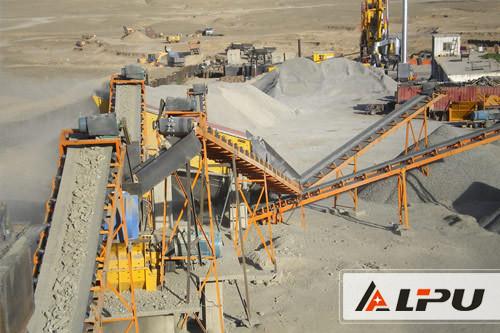

    Working Site of Stone Crushing Plant:


    100t/h Stone Crushing And Screening Plant In Ore Dressing Industry
