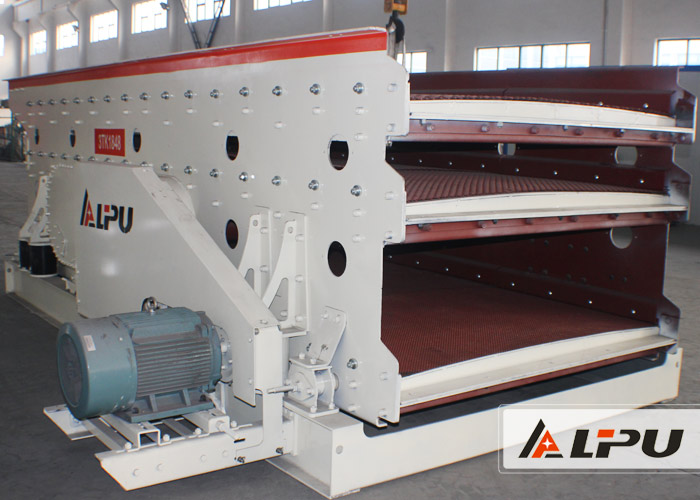

    3 Layer Elliptic Vibrating Screening Machine In Mineral Screening Plant

    Ask Lasest Price
    Brand Name : LIPU
    Model Number : 3TK1848
    Certification : ISO9001:2008,CE,IQNet
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 sets/quarter
    Delivery Time : 15-25 days after receiving advanced payment
    • Product Details
    • Company Profile

    3 Layer Elliptic Vibrating Screening Machine In Mineral Screening Plant

    3 Layer Elliptic Vibrating Screening Machine In Mineral Screening Plant

    Brief Introduction:

    TK Series Elliptic Vibrating Screen is a new type vibrating screen by absorbing international state-of-art.

    It has advantages of circular vibrating screen as well as linear vibrating screen, and its main parameters

    are adjustable. It is suitable for both dry type and wet type screening process. It has been widely used

    in screening process of sand-stone production line. It can also be used for classifying process in many

    areas such as ore dressing, chemical, construction, transportation and etc.

    Performance features:

    1. Vibration exciter is made up of three shafts which have eccentric blocks, so its vibration path is

    ellipse, the exciting force large and screening efficiency high.

    2. Commonality of spare parts. Only 2 kinds of vibrators for more than 10 models of the screen.

    3. Vibrating frequency and amplitude and direction angle are adjustable to suit various applications.

    4. In case of accident of side plate cracking because of welding technique, we adopt riveting

    interconnecting piece with ring-grooved lock bolt.

    5. Low noise, steady resonance region and little pressure on the base by choosing optimally designed

    spring.

    6. It is an ideal equipment for mobile crushing & screening plant, due to low installation height and

    steady process.

    7. By using low alloy bending structure steel (Q345), it still can work in cold area at -40.C.

    Technical Parameters:

    Model

    Layer

    Vibrating Frequency

    (r/min)

    Capacity

    (t/h)

    Power

    (kW)

    Overall Dimension

    L×W×H(mm)

    Weight

    (t)

    2TK1548

    2

    720-875

    140-650

    22

    5560×2950×1450

    6.7

    3TK1548

    3

    720-875

    140-650

    22

    5560×2950×1860

    7.5

    4TK1548

    4

    720-875

    140-650

    30

    5560×2950×2280

    8.3

    2TK1848

    2

    720-875

    180-700

    22

    5560×3250×1450

    7.5

    3TK1848

    3

    720-875

    180-700

    30

    5560×3250×1860

    8.6

    4TK1848

    4

    720-875

    180-700

    30

    5560×3250×2280

    9.7

    2TK1860

    2

    720-875

    250-850

    30

    6760×3250×1450

    8.2

    3TK1860

    3

    720-875

    250-850

    30

    6760×3250×1860

    9.9

    4TK1860

    4

    720-875

    250-850

    37

    6760×3250×2280

    11.6

    2TK2160

    2

    720-875

    300-1000

    37

    6760×3550×1450

    10.5

    3TK2160

    3

    720-875

    300-1000

    37

    6760×3550×1860

    12.4

    4TK2160

    4

    720-875

    300-1000

    45

    6760×3550×2280

    14.3

    2TK2460

    2

    720-875

    350-1200

    37

    6760×3850×1450

    12.5

    3TK2460

    3

    720-875

    350-1200

    45

    6760×3850×1860

    14.7

    4TK2460

    4

    720-875

    350-1200

    45

    6760×3850×2280

    16.9

    Product Pictures Show :
